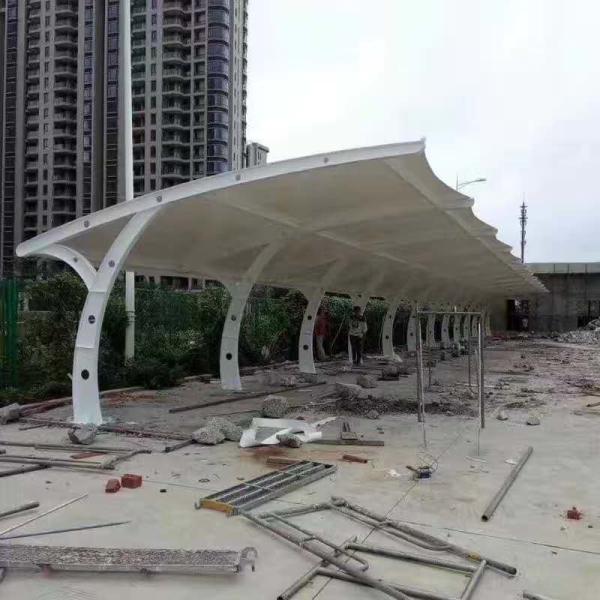

Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Public Area Car Parking Shed Metal Garage Buildings With Single Floor
Specifications
Brand Name :
SPDAR
Model Number :
4.5M height x 12M length x 5M wideth
Certification :
ISO, BS, ASTM
Place of Origin :
DONGGUAN, GUANGDONG, CHINA
MOQ :
20tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 metric ton/month
Delivery Time :
15~45days
Packaging Details :
Packed in a iron holder and then by a container, normally 15tons ~25tons per 40HQ container, loading quantity according to member's shape and length
Shape :
Arc
Installation :
Use High-Strength Bolt
Paint color :
Red, Green, Grey, White
Steel material standard :
Q235B/Q345B
Loading :
by 40HQ Container
H beams Specifications :
6mm~25mm thickness H Beams
Floor :
Galvanised steel foor
Installation Time :
20days
Description

Public Area Car Parking Shed Garage Steel Frame/Single Floor/Several Floors

1. General Description

Garage Steel Frame or we can call it Car Parking Shed, use pre-fabricated arc steel H beams to build the steel frames and use arc colored steel tiles cover the top. Quick to fabricate,Easy to assemble,Long using time over 50 years,Low cost and maintenance,Environment friendly,Recyclable,Lighter weight,Excellent anti-shock and anti-impact ability.

2. Material Specification Datas for reference

Public Area Car Parking Shed Metal Garage Buildings With Single Floor

Main Steel Frame Column Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section
Beam Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section
Secondary Frame Purlin Q235/Q345/ G450 C and Z purlin
Knee brace Q235B Angle Steel
Tie Rod Q235B Circular Steel Pipe
Brace Q235B Round Bar
Vertical and Horizontal Support Q235B Angle Steel, Round Bar or Steel Pipe

Public Area Car Parking Shed Metal Garage Buildings With Single Floor

3.Process method

CNC Steel plate cutting---- H Shape Forming ------ Welding By ARC Soldering Machine---- Straight/ Shape Fixing --- Joint Steel plate weld by manual--- Sand-blasting---- Paint Treatment Step----Loading Packing

Public Area Car Parking Shed Metal Garage Buildings With Single Floor


4.Loading & Installation for reference

Loaidng in factory


Public Area Car Parking Shed Metal Garage Buildings With Single Floor























Loading at the project site


Public Area Car Parking Shed Metal Garage Buildings With Single Floor
























Installation at job site

Public Area Car Parking Shed Metal Garage Buildings With Single Floor




























5. Before sales service

We have professional engineer teams to make the structural drawing and building drawing according to customer's requirements.
If you are planing to build a Garage Steel Frame Building, please send your requirements to me, and then we can give you the best solution.

BUILDING INFORMATION FORM
We will give you professional technical solution if you can fill this for and contact with us by e-mail, fax or tel which listed at the bottom of this form.
Compay Name:
Client 　 Tel/Fax: 　 E-mail: 　
Building Basic Information
Project: 　 Project No.: 　
Location 　 Building Usage 　 　 Total area 　
Length
(m)		 　 Width
(m)		 　 Eave Height
(m)		 　
Roof material 　
Wall material 　
Design Load and Meteorological Conditions
Wind load
(kn/m2)		 　 Wind speed
(m/sec)		 　 Snow load
(kn/m2)		 　
Rainfall
Capacity		 　 Earthquake Grade 　
Please fill out the below information if your building has the mezzanine
Height of Mezzanine(m) 　 Usage of mezzanine 　
Live load on mezzanine(kn/m2) 　
Please fill out the below information if your building has the crane
Capacity
(t)		 　 Span
(m)		 　 Quantity 　
Hoisting height (m) 　 Other information about crane 　
Building sketch 　 　 　 　 　 　 　


6. After- Sales

We can offer you the whole set installation drawings for assembly conduction.

Also we have professional installation teams, if you need , we can offer the installation engineers to help you to conduct the whole buildings installation.
