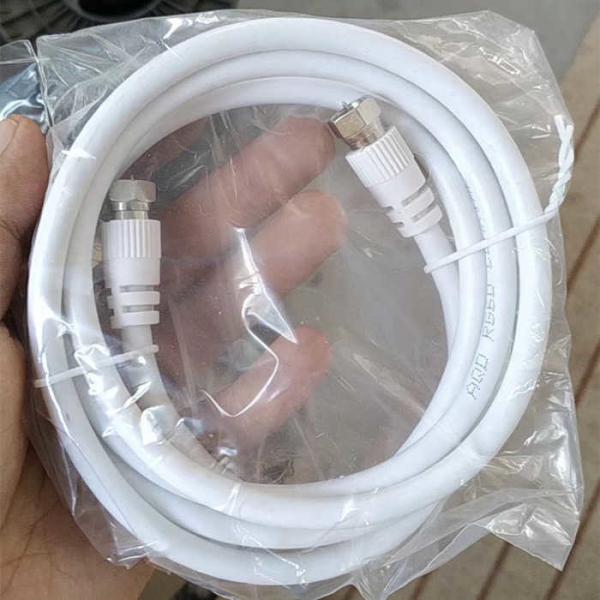

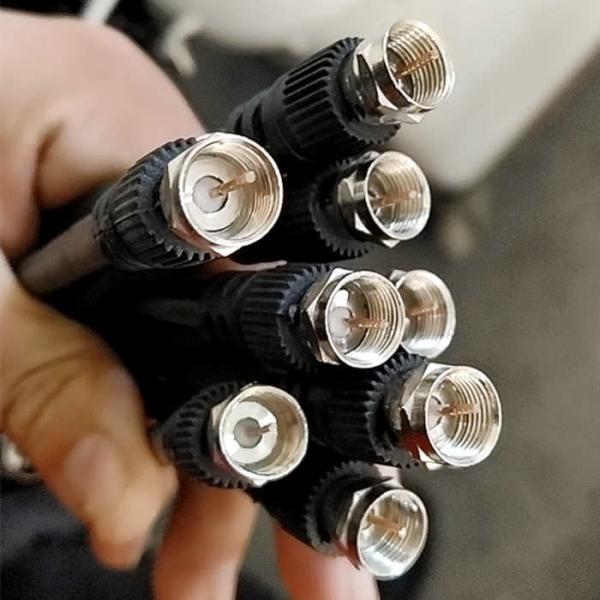

RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer
RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer
RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer
RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer
RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer
RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer
Specifications
Brand Name :
OEM Produce
Model Number :
RG6U Patch cord
Certification :
CE. ROHS. CPR
Place of Origin :
Hangzhou, China
MOQ :
1000pcs
Price :
negotiatable
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
1Pcs/ Plastic Bag
Color :
White PVC
Lenth :
customized
Useful :
TV Signal
Connector Type :
F Male Plug
Unit Packing :
PE Bag
Description

RG6U F Male Connector Pre-Made 75Ohm Coaxial Cable For TV Signal Transfer

RG6 Standard

Construction Material Diameter(mm)
Inner Conductor BC / CCS 1.02
Dielectric Foam PE 4.8
First Shield Bonded AL Foil 18
Second Shield AL Braid 60%
Outer Jacket PVC 6.8

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0

Return Loss 5-1000MHz(dB)

≥22

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

RG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal TransferRG6U F Male Connector 75 Ohm Coaxial Cable For TV Signal Transfer

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
