Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire
Specifications
Brand Name :
OEM Produce
Model Number :
FTP/UTP CAT5E CAT5E Cable
Certification :
CPR. Rohs. CE.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
FOB Shanghai Price: 43.00 USD/305m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Type :
FTP/UTP CAT5E CAT5E Cable
Conductor :
4 Pairs Bare Copper
Shield :
AL Foil+Earth Wire
Rip Cord :
Nylon or Cotton Wire
Color :
Blue Transparent PVC or OEM
Length :
1000Ft/ 305M or OEM
Packing :
Pull box or OEM
Application :
Networking,PC,Telecommunication
Description

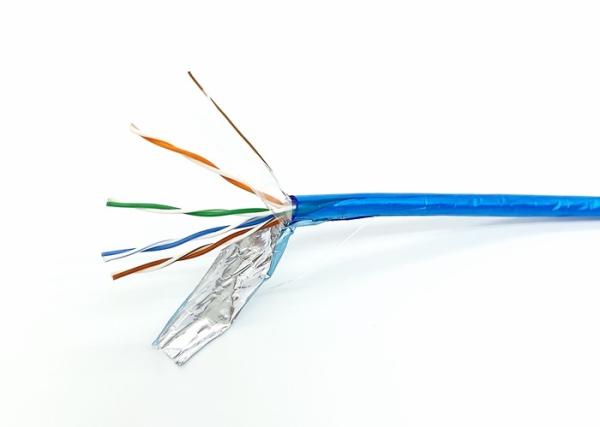

Shielded FTP/UTP CAT5E Twisted Lan Cable Blue Transparant PVC Computer Wire

CAT5E 4 Pair 0.5mm Copper

UTP CAT5E
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring
Basic Construction Material Diameter (mm)
Conductor BC/ CCA 24AWG
Insulation HDPE 0.9
Shield AL Foil 15
Earth Wire/ Drain Wire 0.4TC/ TCCA
Rip Cord Nylon/ Cotton
Outer Jacket Transparent Blue PVC 5.3
BASIC CHARACTERISTICS
Temperature Rating -20℃ to 60℃
Dielectric Breakdown 2500V
DC Resistance/Unbalance 28.6Ω/1000’Max/5% Max
Characteristics Impedance 100Ω
Other Electric Performance Frequency Attenuation Return Loss Pair to Pair
(MHz) (dB/100m) (dB/100m) Next ELFEXT
(dB/100m) (dB/100m)
0.77 1.8 NA 70 69
1 2 20 68.3 66.8
4 4 23 59.3 54.7
8 5.8 24.5 54.8 48.7
10 6.5 25 53.3 46.8
16 8.2 25 50.3 42.9
20 9.2 25 48.8 40.7
25 10.4 24.3 47.3 38.8
31.25 11.7 23.6 45.9 36.9
62.5 17 21.5 41.4 30.8
100 22 20.1 38.3 26.8
155 28.1 18.8 35.5 22.9
200 32.4 18 33.8 20.7
300 41 16.8 32.3 17.2
350 44.9 16.3 30.2 15.9

What should we do if the cctv monitoring project exceeds 100 meters?

We know Category 5 and Category 6 cable can transfer signal approxmitely 100 meters, even Category 6 standard network cable, it can only up to 120 meters. Almost all network cable in market can not exceed 90 meters in engineering construction.

How to increase the transmission distance to 300 or more than 300 meters?

Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire

A lan cable switch (relay device) can be installed between the two pieces cables. In theory, we can add up to four switches during cctv installation. If you install 4 switches to connect 5 network segments, the theoretical maximum transmission distance can reach 500m. The switch has the function of amplifying the signal, and the network signal will be strengthened.

However, the signal may be unstable after the third-stage amplification of the switch. We suggest to add no more than two lan cable switches to solve the transmission problem within 300 meters.

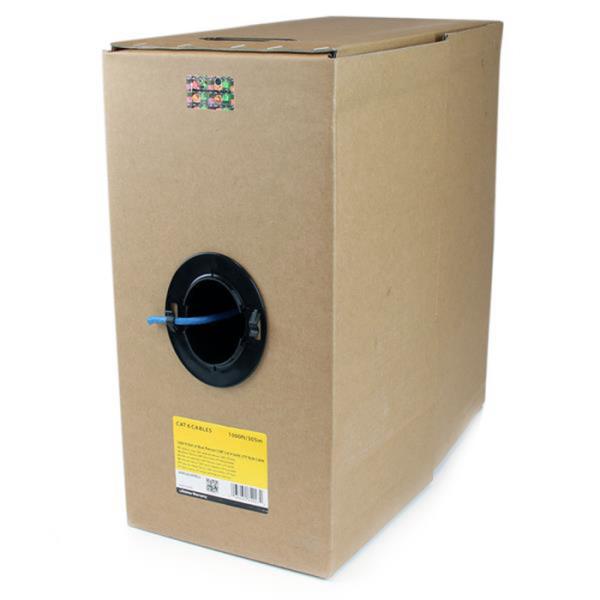

Lan Networking Cables Packing for Global Market

Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer WireShielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer WireShielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer WireShielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer WireShielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire

Networking Cable Production Line

Shielded FTP/UTP Twisted Bulk CAT5E Cable Blue Transparant PVC Computer Wire

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
