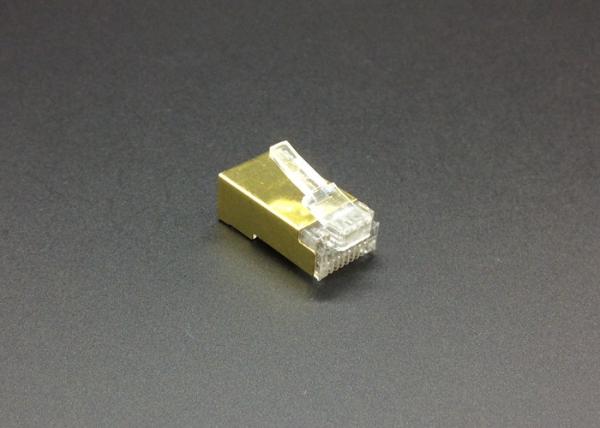

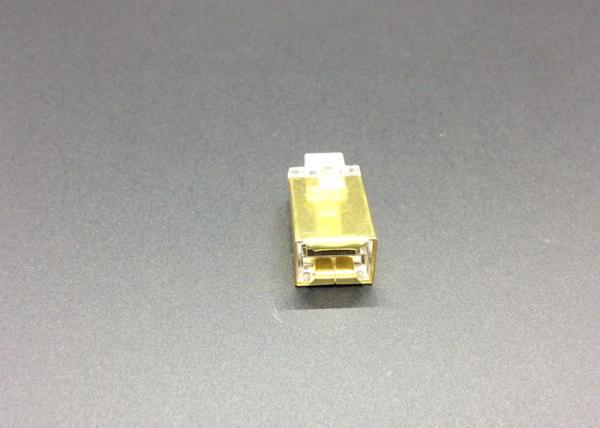

Shielded 8P8C Internet CCTV Cable Accessories RJ45 Modular Plug FTP CAT5E Gold Color
Shielded 8P8C Internet CCTV Cable Accessories RJ45 Modular Plug FTP CAT5E Gold Color
Shielded 8P8C Internet CCTV Cable Accessories RJ45 Modular Plug FTP CAT5E Gold Color
Shielded 8P8C Internet CCTV Cable Accessories RJ45 Modular Plug FTP CAT5E Gold Color
Shielded 8P8C Internet CCTV Cable Accessories RJ45 Modular Plug FTP CAT5E Gold Color
Shielded 8P8C Internet CCTV Cable Accessories RJ45 Modular Plug FTP CAT5E Gold Color
Specifications
Brand Name :
OEM Produce
Model Number :
Coaxial Connector
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10000pcs
Price :
0.03usd/pcs
Payment Terms :
TT. LC
Supply Ability :
1000000Pcs/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Material :
PC Plastic
Useful :
Internet Connector
Type :
RJ45 Modular Plug FTP CAT5E
Certificate :
RoHS CE
Feature :
Gold Color Shielded 8P8C
Description

RJ45 Modular Plug FTP CAT5E Gold Color Shielded 8P8C Internet Connector

​A Brief Introduction of Testing

UL E241512, complies with FCC Part 68 subpart of standards, plugs available for standed or solid wire 24-26 AWG.

Inspection for Environment Protection:

A. Passed the European "ROHS" safety standard test Report No.: 2040076/EC

B. Test Method

Lead content with reference to EPA method 3050B: 1996

Cadmium content-with reference to BS EN1122:2001 method B

Mercury content-with reface to EPA 3052:1996

Hexabalent chromiu content-with reference to EPA3060A & EPA7196A

Analysis was performed by atomic absorption spectrometer and inductively coupled plasma

atomic emission spectrometer(ICP-AES) UV-VIS spectrophotometer.

Electrical Test:

A. 250V AC max. at 2 amps.

B. Dielectric with standing 500 Volts AC.

C. Insulation Resistance: 500 mega ohms.

D. Termination Resistance: 35 mega ohms.

Goldplate Inspection:

Per MIL-G-45204C, TYPE Ⅱ(99% pure gold minimum) Grade C+(knoop hardness range 130-250) class Ⅰ(50 micro inches minimum thickness)

Mechanical:

A. Gadle-to-plug tensile strength-20LBS(89N) min.

B. Durability: 2000 mating cycles.

Material & Finish:

A. Housing material: Poly carbonate 94V-0&-94V-2(UL No. E50075)

B. Contact blade: Phosphor Bronze High strength oopper alloy JIS C519R-H(PBR-2)

C. 100 micro inches nichel under plated & gold selected

Operating Temprature: -40℃-+125℃
