ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable
ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable
ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable
ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable
ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable
ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable
Specifications
Brand Name :
OEM Produce
Model Number :
ADSS
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
customized
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Jacket :
Double PE Jacket
Armored :
Steel Tape Armored
Application :
backbone network
Fiber :
Outdoor Fiber Optic Cable
Type :
ADSS
Characteristic :
All Dielectric
Self support :
Self-Supporting Aerial Cable
Description

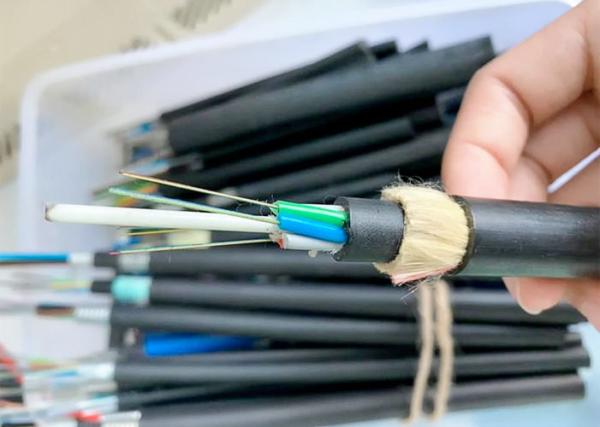

ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting Aerial Cable

Description

ADSS cable is loose tube stranded. Fiber, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP(Fiber Reinforced Plastic) as a non-Metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength menber, the cable is completed with PE or AT(anti-tracking) outer sheath.

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As it’s name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network.

Applications

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.

For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied.

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Temperature Range

Operating : -40ºC to +70ºC

Storage : -50ºC to +70ºC

Installation : -30ºC to +70ºC

Bending Radius:

Static 12.5D

Dynamic 25D

Characteristics

Can be installed without shutting off the power.

Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.

Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

Large span lengths and the largest span is over 200m. Good performance of tensile strength and temperature. The design life span is over 30 years.

ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable

Optical Characteristics ADSS Standard

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm ≥500 MHz·km ≥200 Mhz·km
1300 nm ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm


Structure and Technical Specifications

Ref. Outer Ref. Weight Rec. Daily Max. Max Allowable Break Strength Modulus of Heat Suitable Span
Diameter (kg/km) Working Tension Working Tension Strength Member Elasticity Expansion (NESC Standard,m)
CSA CSA Coefficient
(mm) PE Jacket AT Jacket (kN) (kN) (kN) (mm²) (kN/mm²) (×10-6/K) A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.ADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV CableADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV CableADSS Outdoor Fiber Optic Cable All Dielectric Self-Supporting CCTV Cable

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
