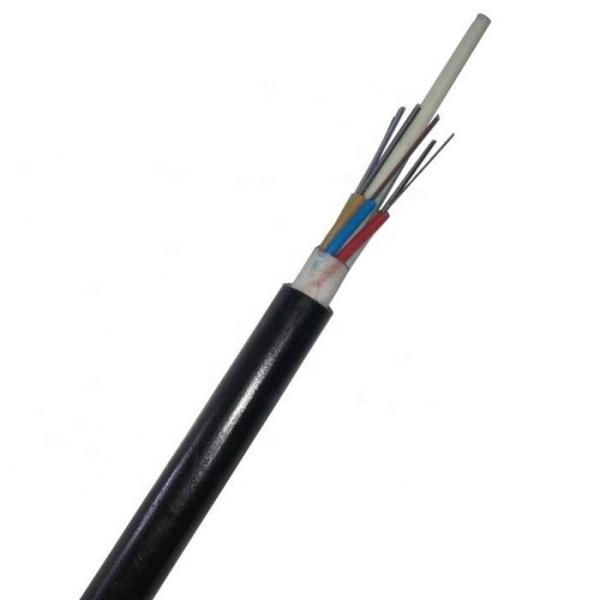

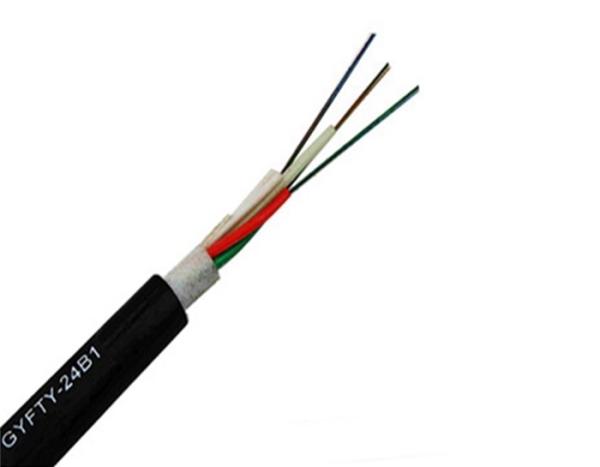

GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial
GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial
GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial
GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial
GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial
GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial
Specifications
Brand Name :
OEM Produce
Model Number :
GYFTY
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Supply Ability :
1000/ month
Delivery Time :
15days
Packaging Details :
wooden drum
Type :
GYFTY Outdoor Fiber Optic Cable
Application :
HTTS, HTTP, Telcommunication, CATV
Fiber Type :
Single Mold, G.652, G.655 or G.657
Length :
1km, 2km or as required
Packing :
Wooden Drum
Fiber Count :
2-288cores
Strenth Member :
FRP
Description

Duct and Aerial Optical Cable GYFTY Outdoor Fiber Optic Cable

Armored Loose Tube Single Jacket/ Single Armore Cable

Temprature Range

Operating: -40℃ to +70℃

Storage:-50℃ to +70℃

Installation: -30℃ to +70℃

Bending Radius:

Static: 10D

Dynamic: 20D

Description:

Loose Tube Single Jacket All Dielectric Cables are lightweight with small diameter and designed for duct and aerial(lashed) installation.

Features:

Up to 288Fibers

Loose tube gel-filled construction for superior fiber protection.

All dielectric structure

UV and Moisture resistant design.

Applications:

Backbones and Access.

Installed in ducts, lasher and aerial.

GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial

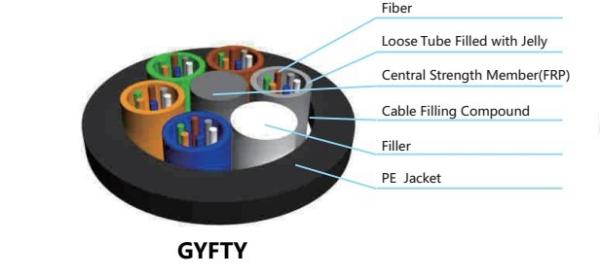

Structure and Technical Specifications GYFTY(2-288F)

Fiber Count Nominal Diameter(mm) Nominal Weight(kg.km) Max Fiber Per Tube Max No. of Tubers+Fillers Allowable Tensile Load(N) Allowable Crush Resiatance(N/100mm)
Short Term Long Term Short Term Long Term
2~36 9.6 85 6 6 1500 600 1000 300
38~72 10.2 100 12 6 1500 600 1000 300
74~96 11.6 130 12 8 1500 600 1000 300
98~120 13.1 162 12 10 1500 600 1000 300
122~144 14.9 204 12 12 1800 600 1000 300
146~216 15.9 205 12 18(2 layers) 2200 600 1000 300
>216 Available upon customer`s reuest

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.GYFTY All Dielectric Outdoor Fiber Optic Cable for HTTP CATV Duct and Aerial

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
