GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
Specifications
Brand Name :
OEM Produce
Model Number :
GYFXTY-FS-Ⅱ
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
100-300usd
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Jacket :
GYFXTY-FS-Ⅱ
Product :
Outdoor Fiber Optic Cable
Application :
FTTX
Fiber :
Fujikura G652D
Feature :
Uni-Tube All Dielectric Drop Cable
Description

GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable

GYFXTY-FS-Ⅱ Outdoor Cable

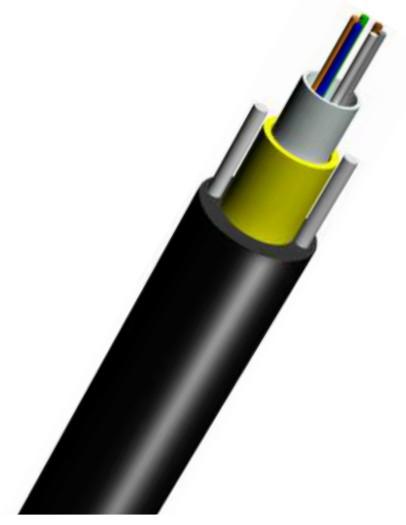

Uni-Tube All Dielectric Aerial Drop Optical Fiber Cable



DescriptionUni-Tube All Dielectric Aerial Drop cable is specifcally designed for Fiber-to -the-Subscriber applications. It is a round, all dielectric cable ideally suited for self-supporting drop-type installations as well as in lashed or conduit builds. The overall glass yarn strength member is used for additional mechanical protection.

Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features

Small size, Low cost. Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant. and protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware. Self-supporting no messenger needed.


Applications
Conduit, Duct, Aerial/Lashed.
FTTx, Access.

Option
FRP or KFRP strength member can be choosed .
Glass yarn or Aramid yarn can be choosed.

GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable
Optical Characteristics GYFXTY

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm ≥500 MHz·km ≥200 Mhz·km
1300 nm ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm


Structure and Technical Specifications (7×1.0mm-Steel Stranded Wire)

Fiber
Count		 Nominal
Diameter
(mm)		 Nominal
Weight
(kg/km)		 Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)

Aerial Install span with 1%sag
Short Term Long Term Short Term Long Term

NESC Light

NESC Medium

NESC Heavy
2~12 6.5 35 1800 800 2200 100

80meters

65meters

45meters
14~24 7.0 40 1800 800 2200 100

65meters

50meters

35meters

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.GYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop CableGYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop CableGYFXTY-FS-Ⅱ Outdoor Fiber Optic Cable Uni-Tube All Dielectric Drop Cable

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
