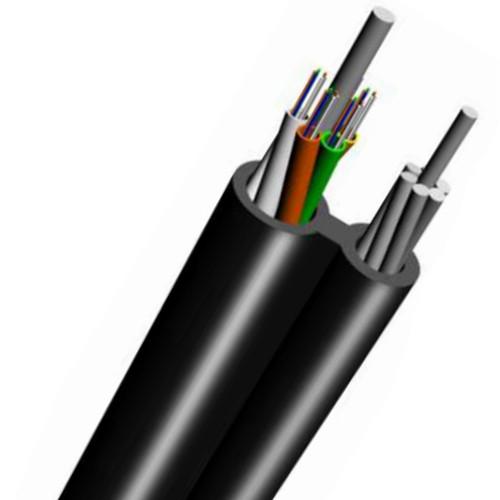

GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
Specifications
Brand Name :
OEM Produce
Model Number :
GYTC8Y
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
100-300usd
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Type :
GYTC8Y
Application :
Aerial for Backbone Access
Useful :
Figure 8
Fiber :
Fiber Optic Cable
Description

GYTC8Y Aerial Figure 8 Fiber Optic Cable for Backbone Access

GYTC8Y Outdoor Cable
Aerial Fig8 Armored Loose Tube Single Jacket/Single Armor Cable

Description

Aerial Fig8 Non-Armored Loose Tube cable is designed especially for aerial
installations. With fiber counts up to 288 and S-Z strand designs.

Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design.
Self-supporting Figure 8 design.

Applications
Aerial/Lashed.
Backbone. Access.

Option
FRP or Steel central strength member can be choosed.
Different size of steel strand wire can be choosed to reach different mid-span.
Dry core structure available for ease of handling.
Flame-retardant jacket can be provided.

GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone AccessGYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
Optical Characteristics GYTS

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm ≥500 MHz·km ≥200 Mhz·km
1300 nm ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm


Structure and Technical Specifications

Fiber
Count		 Nominal
Diameter
(mm)		 Nominal
Weight
(kg/km)		 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)		 Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)
Short Term Long Term Short Term Long Term
2~30 9.4x17.4 180 6 6 4000 2000 1000 300
32~36 10.0x18.0 180 12 6 4000 2000 1000 300
38~60 10.6x18.6 180 12 8 4000 2000 1000 300
62~72 10.9x19.0 215 12 10 4000 2000 1000 300
＞72 Available upon customer·s request 4000 2000 1000 300

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone AccessGYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
