Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger
Specifications
Brand Name :
OEM Produce
Model Number :
FTP CAT5E MS Self Supporting
Certification :
CPR. Rohs. CE.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
According to specification
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Type :
FTP CAT5E MS CCTV Cable
Conductor :
4 Pairs Bare Copper or CCA
Shield :
AL Foil
Rip Cord :
Nylon or Cotton Wire
Jelly :
with or without Jelly
Length :
1000Ft/ 305M or Customized
Packing :
Easy Pull box or Wooden Drum
Application :
CCTV Video, Network, Telecommunication
Messenger :
1.2Galvanized Steel
Description

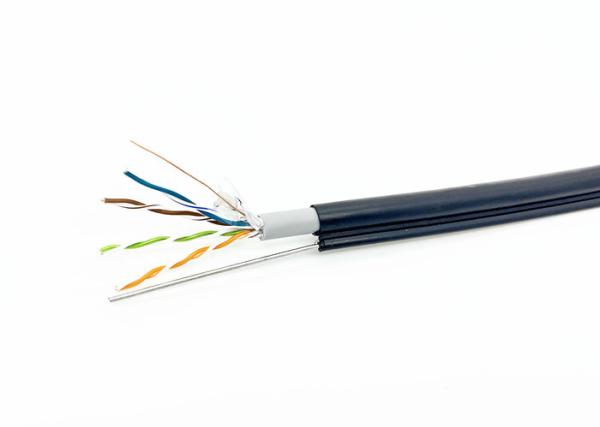

Outdoor Double Jacket FTP Bulk CAT5E Cable with Steel Messenger 8Fig Aerial CCTV Cable

FTP CAT5E MS LAN CABLE OUTDOOR
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring
Basic Construction Material Diameter (mm)
Conductor BC/ CCA 24AWG
Insulation HDPE 0.9
Shield AL Foil 15
Drain Wire CCA/ TCCA/ BC Wire 0.5
PET Foil PET
Rip Cord Nylon/ Cotton
Inner Jacket PVC Gray 5.2
Outer Jacket Black UV-PE 6.3
Self-Supporting Messenger Galvanized Steel 1.2
BASIC CHARACTERISTICS
Temperature Rating -20℃ to 60℃
Dielectric Breakdown 2500V
DC Resistance/Unbalance 28.6Ω/1000’Max/5% Max
Characteristics Impedance 100Ω
Other Electric Performance Frequency Attenuation Return Loss Pair to Pair
(MHz) (dB/100m) (dB/100m) Next ELFEXT
(dB/100m) (dB/100m)
0.77 1.8 NA 70 69
1 2 20 68.3 66.8
4 4 23 59.3 54.7
8 5.8 24.5 54.8 48.7
10 6.5 25 53.3 46.8
16 8.2 25 50.3 42.9
20 9.2 25 48.8 40.7
25 10.4 24.3 47.3 38.8
31.25 11.7 23.6 45.9 36.9
62.5 17 21.5 41.4 30.8
100 22 20.1 38.3 26.8
155 28.1 18.8 35.5 22.9
200 32.4 18 33.8 20.7
300 41 16.8 32.3 17.2
350 44.9 16.3 30.2 15.9

Double Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel MessengerDouble Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel MessengerDouble Jacket 8Fig Aerial FTP Bulk CAT5E Cable With Steel Messenger

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
