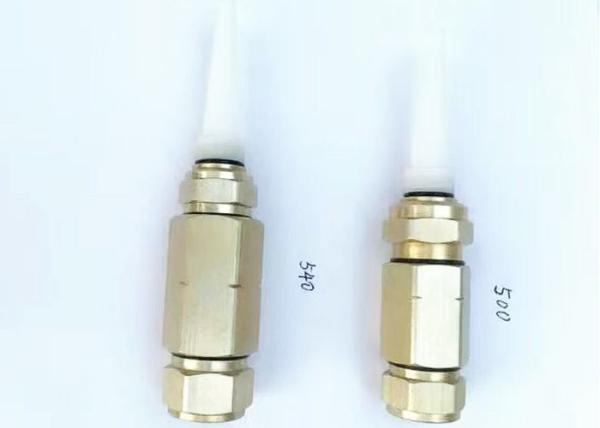

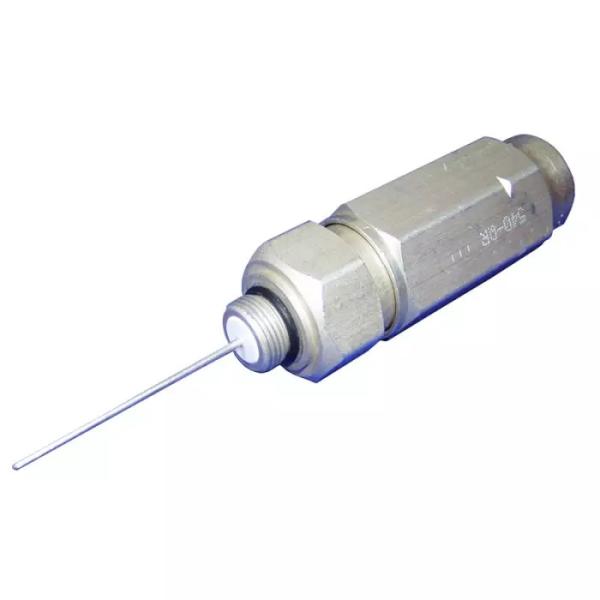

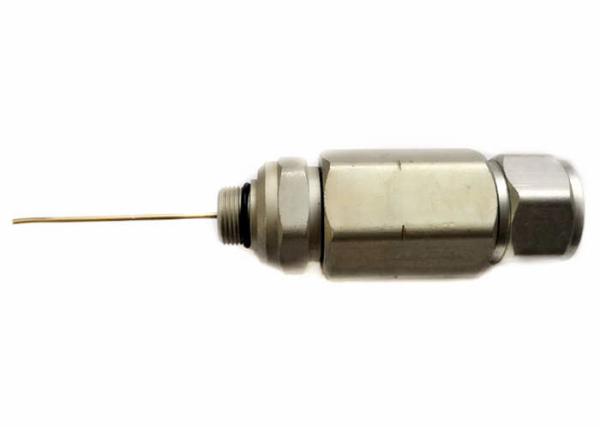

540-CH-QR Outdoor Coaxial Cable Connector 1Ghz 75 Ohm With Copper Pin
540-CH-QR Outdoor Coaxial Cable Connector 1Ghz 75 Ohm With Copper Pin
540-CH-QR Outdoor Coaxial Cable Connector 1Ghz 75 Ohm With Copper Pin
540-CH-QR Outdoor Coaxial Cable Connector 1Ghz 75 Ohm With Copper Pin
540-CH-QR Outdoor Coaxial Cable Connector 1Ghz 75 Ohm With Copper Pin
540-CH-QR Outdoor Coaxial Cable Connector 1Ghz 75 Ohm With Copper Pin
Specifications
Brand Name :
OEM Produce
Model Number :
QR540 Coaxial Connector
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
50PCS
Price :
2.5usd/pcs
Payment Terms :
TT. LC
Supply Ability :
5000PCS/ Week
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Material :
Aluminium Alloy
Pin Material :
Copper, Brass
Application :
Trunk CATV, RF
Waterproof :
Silicone O-Ring watertight and sealed
Plating :
Gold chromate conversion coating
Bandwidth :
5 MHz-1 GHz
Impedence :
75ohm
Description

540-CH-QR Outdoor Coaxial Cable Connector With Copper Pin RF Feeder Digital Adaptor

Major technical characteristics:

Temperature Range -40 to +60°c
Vibration 100m/s2 (10-500Hz). 10g
Impedance 50Ω,75Ω
Frequency Range DC to 1GHZ
Working Voltage 170V r.m.s at sea level
Withstanding Voltage 500V r.m.s at sea level
Contact Resistance Center contact ≤10m Ω
Outer contact ≤5m Ω
Insertion Loss ≤0.24dB(6GHz)
Insulation resistance ≥1000M Ω
Center Conductor Retention Force ≥0.2N
Voltage Standing Wave Ratio Straight ≤ 1.20/6GHz
Right angle ≤ 1.30/6GHz
Durability(mating) ≥ 500cycles

Material and plating:

Body copper material Nickel plated
Pin contact Annealed copper, Brass with gold, nickel, zinc, silver plated Gold plated
Socket contact Beryllium or tin bronze Nickel plated
Resilient Contact Beryllium-copper Nickel plated
Insulator PTFE, PE, Teflon, POM, PP
Crimp Ferrule copper material Nickel or gold plated
