Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S
Specifications
Brand Name :
OEM Produce
Model Number :
VHDX70S
Certification :
CPR. CE. ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
FOB Shanghai Price: 11.0 USD/100m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit

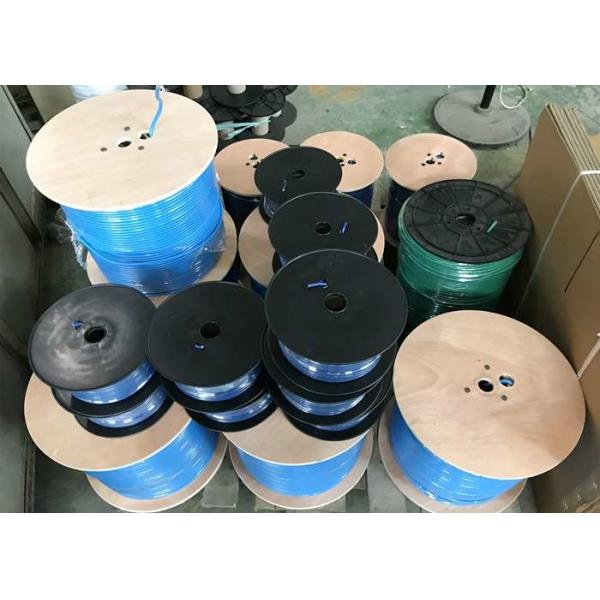

Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Conductor :
1.1Annealed Copper
Braiding :
128*0.12TC
Color :
Blue RAL 5015
Application :
CCTV, CATV
Length :
500m

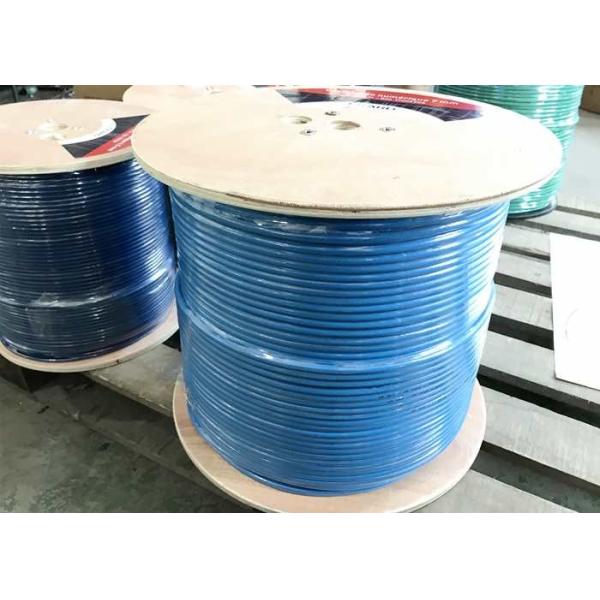

Packing :
Wooden Drum
Fire Resistant :
C2 CM
Description

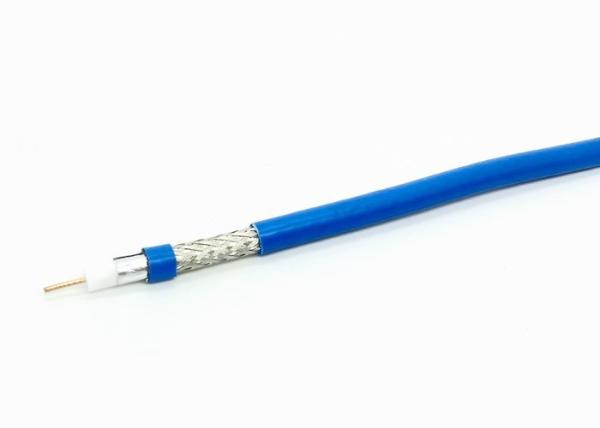

Cable Video HD SDI VHDX70S 75 Ohm Coaxial Cable 1.1 Annealed Copper RG6 Type

Construction Material Diameter(mm)
Inner Conductor Annealed Copper
Ø 1.1 ± 0.005
Dielectric Foam PE/
Cellular PE Physical
Ø 4.9 ± 0.10
First Shield Bonded AL Foil 14
Second Shield TC Braid
78%
16 x (8 x Ø 0.12 mm)
Outer Jacket
PVC – Fire retardant C2
Ø 6.95 ± 0.15

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 58±2
DC Resistance Inner Conductor
21.1 Ω/km
DC Resistance Outer Conductor
12.8 Ω/km
Velocity of Propagation(﹪) 85.0

Return Loss 5-1000MHz(dB)

≥23

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Max Attenuation (dB/100m)
5 1.5
50 4.6
100 6.5
200 9.2
400 13.0
800 18.7
1000 21.5
1350 25.1
2150 32.1
3000 39.1

Coaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70SCoaxial HD SDI 1.1 Annealed Copper RG6 75 Ohm Video Cable VHDX70S

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
