FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera
Specifications
Brand Name :
OEM Produce
Model Number :
FTP Cat5e 2P+2C bulk cctv cable
Certification :
CPR. CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
negotiatable
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Conductor :
7*0.2copper stranded
Insulation :
2x2x0.91HDPE
Shield :
AL Foil Blue
Sheath :
Black PE-UV
Application :
CCTV Surveillance Camera Installation
Cable Shape :
Round
Description

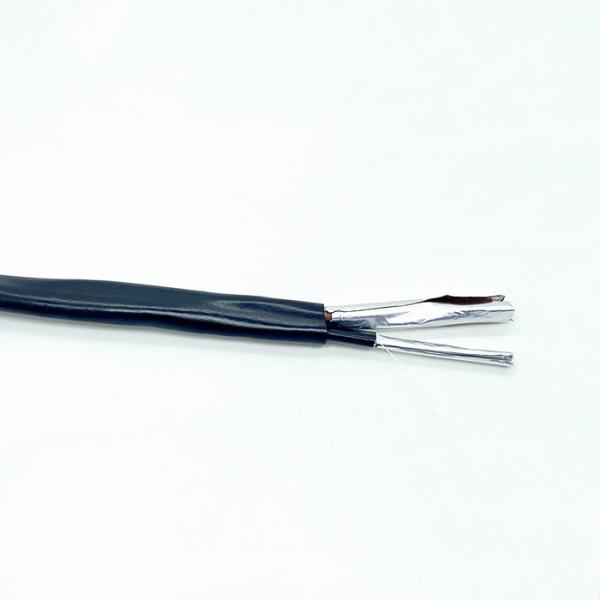

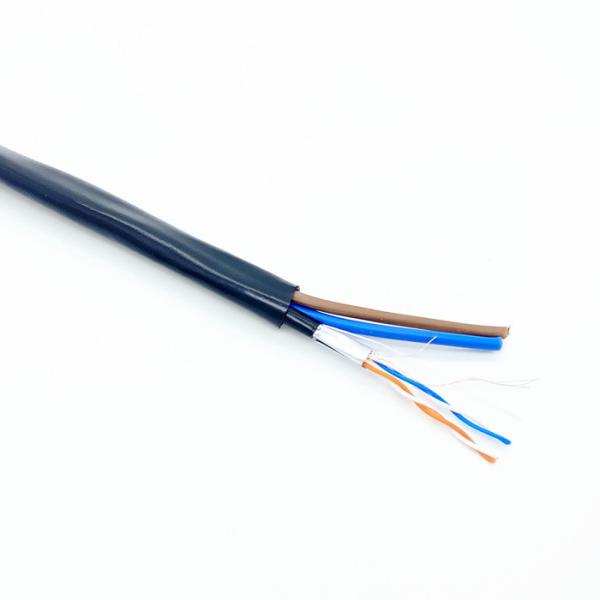

Bulk CCTV Cable FTP CAT5E 2 Pairs Copper Stranded with 2Core Power 1.5mm2 For Surveillance Camera

2P Twisted Network Wire FTP CAT5E+2C Siamese Lan with Power CCTV Cable for IP Camera

we are professiona coaxial and lan cable manufacturer in China. Welcom to let us know your cables need.

CAT5E +2C Siamese Cable:

Spec: 2 Pair*(7*0.2BC+0.91PE)+AL Foil+rip cord+Drain wire+4.3PVC BLACK+2C*(42*0.2CU+2.0PVC)+8.5PVC Black

Packing: 100m/reel or 305m/reel

FTP CAT5E+2C Power Cable

Production Description:

Rate temprature: 60℃, 75℃, 90℃

Reference Standard: TIA/ EIA-568B

Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket

Complies to TIA/ EIA-568B&ISO/ IEC 11801

Application: Ethernet 10Base-TX ATM Trunk Wiring
Basic Construction Material Diameter (mm)
Lan Cable UTP CAT5E Conductor BC 7*0.2stranded
Insulation PE 0.9
Shielded AL Foil 15
Drain wire BC 7*0.2
Jacket PVC 4.3
DC Power Wire Conductor BC 42*0.2
Insulation PE/ PVC 2.0
BASIC CHARACTERISTICS
Temperature Rating -20℃ to 60℃
Dielectric Breakdown 2500V
DC Resistance/Unbalance 28.6Ω/1000’Max/5% Max
Characteristics Impedance 100Ω
Other Electric Performance Frequency Attenuation Return Loss Pair to Pair
(MHz) (dB/100m) (dB/100m) Next ELFEXT
(dB/100m) (dB/100m)
0.77 1.8 NA 70 69
1 2 20 68.3 66.8
4 4 23 59.3 54.7
8 5.8 24.5 54.8 48.7
10 6.5 25 53.3 46.8
16 8.2 25 50.3 42.9
20 9.2 25 48.8 40.7
25 10.4 24.3 47.3 38.8
31.25 11.7 23.6 45.9 36.9
62.5 17 21.5 41.4 30.8
100 22 20.1 38.3 26.8
155 28.1 18.8 35.5 22.9
200 32.4 18 33.8 20.7
300 41 16.8 32.3 17.2
350 44.9 16.3 30.2 15.9

Networking Cable Production Line FTP CAT5E 2 Pairs Copper Stranded Bulk CCTV Cable For Surveillance Camera

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
