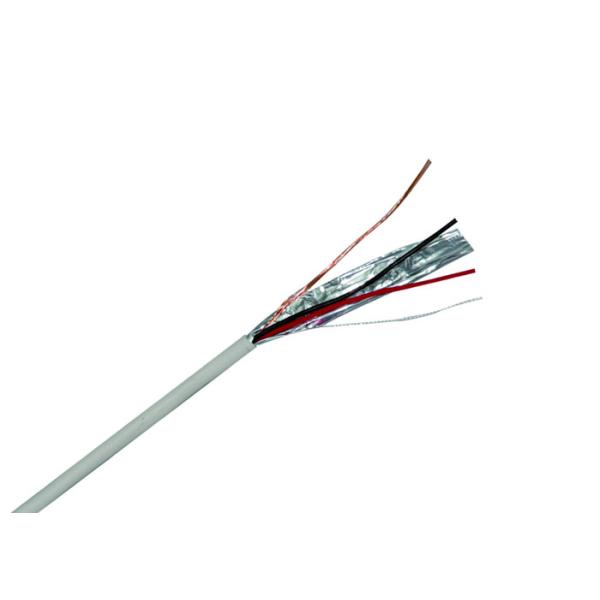

FTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / Microphone
FTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / Microphone
FTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / Microphone
FTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / Microphone
Specifications
Brand Name :
OEM Produce
Model Number :
Alarm Cable
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
FOB Shanghai Price: 30USD/200m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Useful :
Security And Alarm Cable
Jacket Color :
White PVC
Application :
for CCTV Bell and Microphone
Inner Conductor :
2 Cores FTP 0.22mm² BC/ TC
Description

2 Cores FTP 0.22mm² BC/ TC Security and Alarm Cable for CCTV Bell and Microphone

C: Structure of unshielded 0.22mm² soft alarm cable
Serial NO. Section Specification Overall Diameter(mm)
C-01 2*0.22mm² 2*7/0.20 3
C-02 4*0.22mm² 4*7/0.20 3.5
C-03 6*0.22mm² 6*7/0.20 4.1
C-04 8*0.22mm² 8*7/0.20 4.5
C-05 10*0.22mm² 10*7/0.20 5.2
C-06 12*0.22mm² 12*7/0.20 5.4
C-07 14*0.22mm² 14*7/0.20 5.8
C-08 20*0.22mm² 20*7/0.20 6.8
C-09 30*0.22mm² 30*7/0.20 8.5
C-10 40*0.22mm² 40*7/0.20 10
C-11 2*0.5+2*0.22mm² 2*16/0.20+2*7/0.20 3.9
C-12 2*0.5+4*0.22mm² 2*16/0.20+4*7/0.20 4.5
C-13 2*0.5+6*0.22mm² 2*16/0.20+6*7/0.20 4.9
C-14 2*0.5+8*0.22mm² 2*16/0.20+8*7/0.20 5.7
C-15 2*0.5+10*0.22mm² 2*16/0.20+10*7/0.20 6
C-16 2*0.5+12*0.22mm² 2*16/0.20+12*7/0.20 6.3
C-17 2*0.75+2*0.22mm² 2*24/0.20+2*7/0.20 4.2
C-18 2*0.75+4*0.22mm² 2*24/0.20+4*7/0.20 4.9
C-19 2*0.75+6*0.22mm² 2*24/0.20+6*7/0.20 5.3
C-20 2*0.75+8*0.22mm² 2*24/0.20+8*7/0.20 6.2

Electrical Characteristics

Temperature Rating -20℃ to 60℃
Operating Voltage 24/12V
DC Resistance per Conductor@ 20℃ 6.32 Ohms/1M’Nom

FTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / MicrophoneFTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / MicrophoneFTP 0.22mm² BC/ TC Security Alarm Cable 2 Cores For CCTV Bell / Microphone

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
