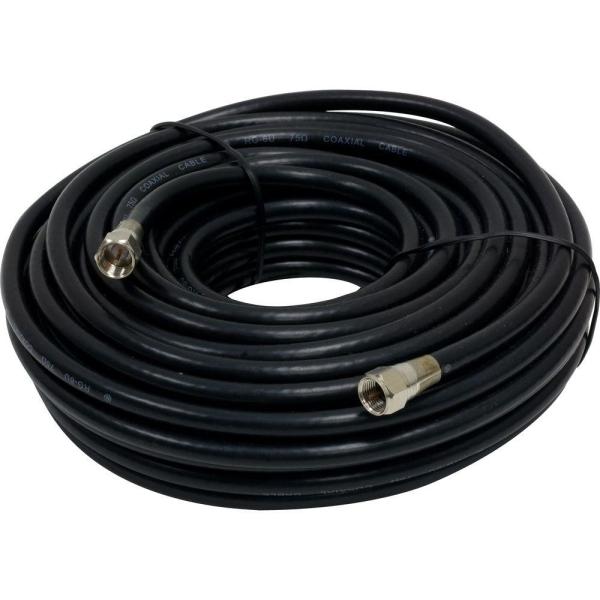

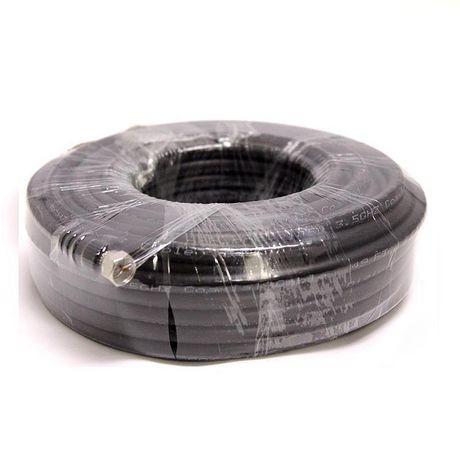

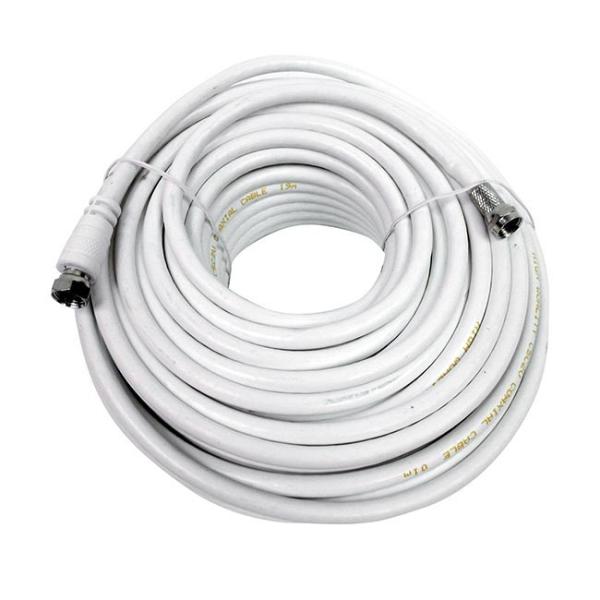

RG6 Ethernet Patch Cable 25FT Meter With F Connector Satelite Dish 64*0.12AL Braiding
RG6 Ethernet Patch Cable 25FT Meter With F Connector Satelite Dish 64*0.12AL Braiding
RG6 Ethernet Patch Cable 25FT Meter With F Connector Satelite Dish 64*0.12AL Braiding
RG6 Ethernet Patch Cable 25FT Meter With F Connector Satelite Dish 64*0.12AL Braiding
RG6 Ethernet Patch Cable 25FT Meter With F Connector Satelite Dish 64*0.12AL Braiding
RG6 Ethernet Patch Cable 25FT Meter With F Connector Satelite Dish 64*0.12AL Braiding
Specifications
Brand Name :
OEM Produce
Model Number :
sat703B BC 4.8FPE 6.8PVC
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
30KM
Price :
0.7USD/ PCS
Payment Terms :
TT. LC
Supply Ability :
100000PCS/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Color :
Black
Inner Conductor :
CCS
Useful :
CATV
Description

RG Series SAT 703 Coaxial cable Hangzhou AiTe Cable Co.,Ltd.

RG6 Standard

Construction Material Diameter(mm)
Inner Conductor BC 1.02
Dielectric Foam PE 4.8
First Shield Bonded AL Foil 18
Second Shield AL Braid 60%
Outer Jacket PVC 6.1

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0

Return Loss 5-1000MHz(dB)

≥22

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
