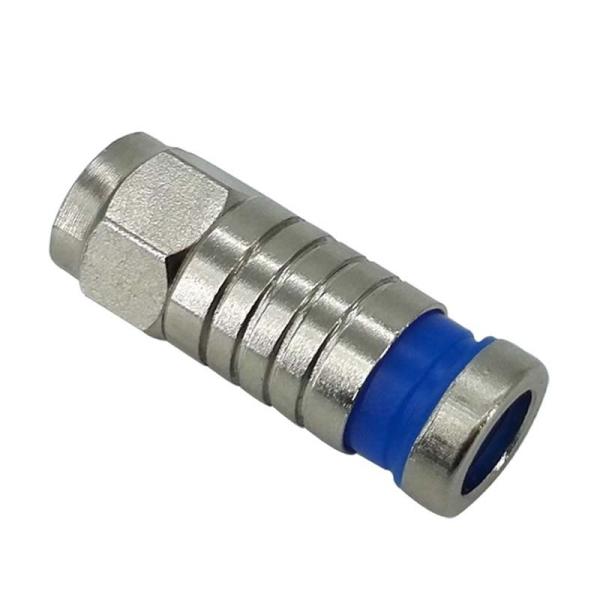

Blue Ring F Male Compression Coaxial Cable Connector RG59 RG6 Plug For CATV
Blue Ring F Male Compression Coaxial Cable Connector RG59 RG6 Plug For CATV
Blue Ring F Male Compression Coaxial Cable Connector RG59 RG6 Plug For CATV
Blue Ring F Male Compression Coaxial Cable Connector RG59 RG6 Plug For CATV
Specifications
Brand Name :
OEM Produce
Model Number :
Coaxial Connector
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
30KM
Price :
0.3usd/pcs
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Material :
Zinc Alloy
Useful :
CATV
Type :
RG59 RG6 Plug Blue Ring
Certificate :
RoHS CE
Name :
F Male Compression F Coaxial connector and Adaptor
Description

Product Details: F Male Compression Connector for RG6 Blue/ CCTV Connector

Description:

F Male Compression Connector for RG6 Cable with Blue Ring.

Body material: Zinc alloy

Insulating material: PTFE

Length: 31mm

Weight: 7g

Major Technical Characteristics
Temperature Range -25 to +60 degree
Vibration 100m/S2 (10 to 500 Hz), 10G
Impedance 75ohm
Frequency Range DC-1GHZ
Center Contact Resistance ≤10Mohm
Outer Contact Resistance ≤5Mohm
Insulation Resistance ≥1000Mohm
Insertion Loss ≤0.20dB/3GHz
Voltage Standing Wave Ratio :
Straight ≤1.22/3GHz
Right Angle ≤1.30/3GHz
Durability (Mating) ≤500(cycles)

Application:

The F connector is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or, in older installations, with RG-59/U cable.

The F connector is inexpensive, yet has good 75 Ω impedance match up to 1 GHz and has usable bandwidth up to several GHz. Most male connectors have a matching threaded connecting ring, though push-on versions are also available.

Push-on F connector ends provide poor shielding against airborne signals (e.g., a nearby TV transmitter will interfere with a CATV station).
