Mini 4 Cores CCTV Outdoor Siamese Cable , RG59 Siamese Cable 1000 Ft
Mini 4 Cores CCTV Outdoor Siamese Cable , RG59 Siamese Cable 1000 Ft
Mini 4 Cores CCTV Outdoor Siamese Cable , RG59 Siamese Cable 1000 Ft
Mini 4 Cores CCTV Outdoor Siamese Cable , RG59 Siamese Cable 1000 Ft
Specifications
Place of Origin :
Hangzhou, China
Brand Name :
OEM Produce
Certification :
CE. ROHS.
Model Number :
RG59+2C CCTV Coaxial Cable
MOQ :
10km
Price :
FOB Shanghai Price: 50USD/200m
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time :
20days after deposit
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Useful :
CCTV Video and Power
Jacket Color :
Black PE
Spec :
Customized
Description

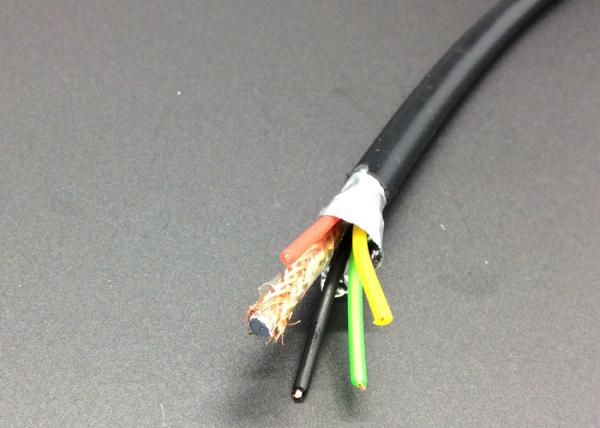

Outdoor RG59 Mini with 4 Cores CCTV cable to carry the video from the camera to the DVR recorder

RG59 Siamese CCTV Coaxial cable

0.5mm Cu+3.5mm FPE+AL Foil+16x3x0.12mm CCA+5.6mm+2*(24*0.2mmCCA+2.0PVC)+5.4PVC Black or White, Packing: 200m/100m coil or 500m/wooden drum

Construction Material Diameter(mm)
Inner Conductor BC 0.5
Dielectric Foam PE 3.5
First Shield AL Foil 14#
Second Shield CCA Braid 46.6%
RG59 Outer Jacket PVC WHITE 5.6
Power Wire Conductor CCA 18AWG
Power Wire Insulation PVC 2.0
Cable Jacket PVC 9.5

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0
Sparker Test 4000

Return Loss 5-1000MHz(dB)

≥22

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.9 2.8
55 2.1 6.7
187 3.6 11.8
211 3.8 12.5
400 5.1 16.7
500 5.7 18.7
750 7.0 22.8
860 7.5 24.6
1000 8.0 26.3
1500 9.9 32.5
1800 10.9 35.6
2200 12.6 41.2

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
