GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored
GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored
GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored
GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored
GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored
GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored
Specifications
Brand Name :
OEM Produce
Model Number :
GYXTS
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Supply Ability :
1000/ month
Delivery Time :
15days
Packaging Details :
wooden drum
Type :
GYXTS Outdoor Optical Fiber Cable
Armored :
Double Armored
Armored Material :
Overall Steel Wire and Corrugated Steel Tape
Fiber Type :
G.652 Single Mold
Length :
1km, 2km or as required
Packing :
Wooden Drum
Description

GYXTS Outdoor Optical Fiber Cable Overall Steel Wire and Corrugated Steel Tape Double Armored

GYXTS Armored Uni-Tube Single Jacket/Double Armored Cable

Temprature Range

Operating: -40℃ to +70℃

Storage:-50℃ to +70℃

Installation: -30℃ to +70℃

Bending Radius:

Static: 10D

Dynamic: 20D

Description:

Armored Uni-Tube Single Jacket/Double Armored cable is designed with the flexibility and versatility required for today's most demanding installations, including direct buried. The overall steel wire armored provides good rodent protection and tensile resistant.The corrugated steel tape armored is used for additional mechanical protection.

Features:

Up to 24 fibers.

Uni-tube gel-filled construction for superior fiber protection. Excellent tensile strength, the layer of steel wire and steel tape provides safe rodent protection and tensile resistant.

UV and moisture-resistant design.

Applications:

Conduit, Duct, Direct-bury.

FTTx, Access.

GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored

Optical Characteristics GYXTS

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm ≥500 MHz·km ≥200 Mhz·km
1300 nm ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm

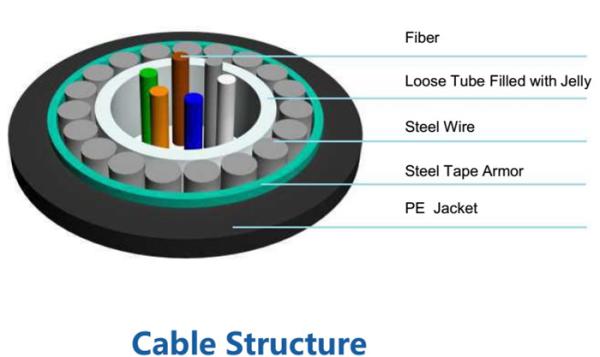

Structure and Technical Specifications

Fiber Count Nominal Diameter
(mm)		 Nominal Weight
(kg/km)		 Allowable Tensile Load
(N)		 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~24 10.9 180 4000 2000 4000 2000


Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.GYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double ArmoredGYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double ArmoredGYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double ArmoredGYXTS Bulk Fiber Optic Cable Overall Steel Wire Corrugated Steel Tape Double Armored

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
