GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
Specifications
Brand Name :
OEM Produce
Model Number :
GYXY
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
100-300usd
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Jacket :
UV HDPE Single Jacket
Type :
GYXY Non-Armored
Application :
HTTS, HTTP, Telcommunication, CATV
Fiber :
Fujikura G652D
Description

GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D

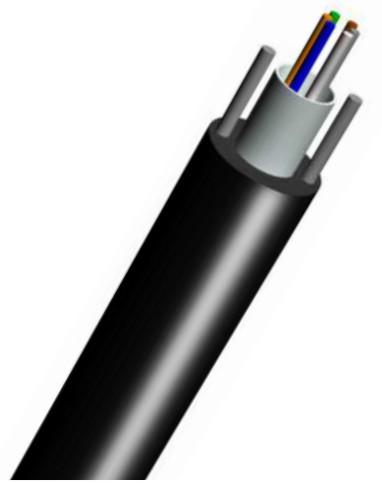

GYXY Outdoor Cable

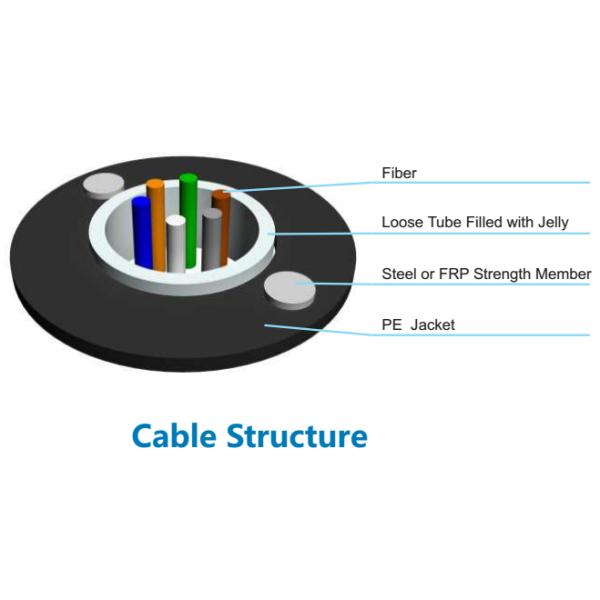

Non-Armored Uni-Tube Single Jacket Cable


Description

Non-Armored Uni-Tube Single Jacket cable is designed with the flexibility and versatility required for today's most demanding installations, including aerial/lashed, Conduit and Duct. Two parallel FRP wire or Steel wire to enhance tensile resistant .

Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features

Compact structure, Low cost. Up to 24 fibers.

Uni-tube gel-filled construction for superior fiber protection.

Two parallel FRP wire or Steel wire to enhance tensile resistant.

UV and moisture-resistant design.


Applications

Conduit, Duct, Aerial/Lashed.

FTTx, Access.

Option

FRP or Steel wire strength member can be choosed.

GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D
Optical Characteristics GYTS

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm ≥500 MHz·km ≥200 Mhz·km
1300 nm ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm


Structure and Technical Specifications (7×1.0mm-Steel Stranded Wire)

Fiber
Count		 Nominal
Diameter
(mm)		 Nominal
Weight
(kg/km)		 Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.2 52 1000 400 200 100
>12 Available upon customer·s request

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.GYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652DGYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652DGYXY Non-Armored Outdoor Fiber Optic Cable , Bulk Optical Cable Loose Tube SM G652D

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
