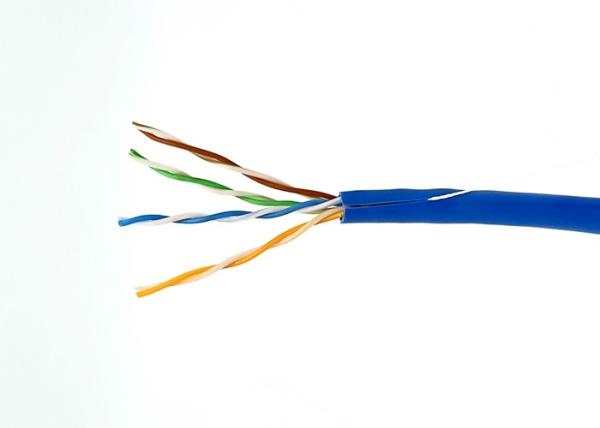

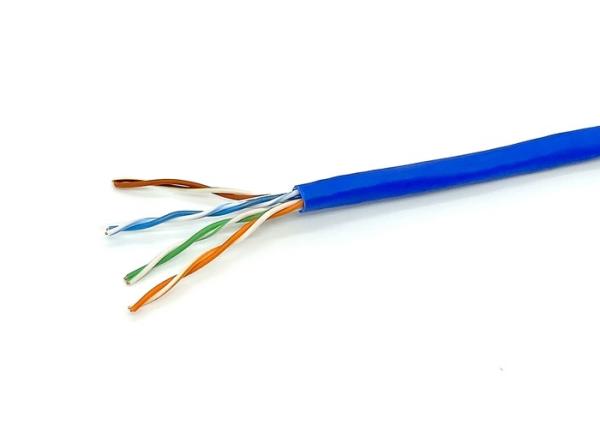

24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire
Specifications
Place of Origin :
Hangzhou, China
Brand Name :
OEM Produce
Certification :
CE. ROHS. CPR.
Model Number :
CAT5E Lan Cable
MOQ :
10km
Price :
FOB Shanghai Price: 43.00 USD/305m
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time :
20days after deposit
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Type :
Network Lan Cable
Conductor :
4 Pairs Bare Copper Solid
OEM :
yes
Application :
Telecommunication，Networking，PC
Length :
1000Ft/305Meter or Customized
Rip Cord :
Nylon or Cotton Wire
Description

Unshield CAT5E 4 Pairs 24AWG Solid BC Lan Cable Indoor Blue PVC Twisted Wire

24AWG UTP/ FTP CAT5E 4 Pair Bare Copper Network Lan Cable Ethernet Wire

CAT5E 4 Pair 0.5mm Copper

UTP CAT5E
Production Description: Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B Bare soled copper conductor RoHS Complied PVC, PE or LSOH Jacket Complies to TIA/ EIA-568B&ISO/ IEC 11801 Application: Ethernet 10Base-TX ATM Trunk Wiring
Basic Construction Material Diameter (mm)
Conductor BC 24AWG
Insulation PE 0.9
Jacket PVC 5.1
BASIC CHARACTERISTICS
Temperature Rating -20℃ to 60℃
Dielectric Breakdown 2500V
DC Resistance/Unbalance 28.6Ω/1000’Max/5% Max
Characteristics Impedance 100Ω
Other Electric Performance Frequency Attenuation Return Loss Pair to Pair
(MHz) (dB/100m) (dB/100m) Next ELFEXT
(dB/100m) (dB/100m)
0.77 1.8 NA 70 69
1 2 20 68.3 66.8
4 4 23 59.3 54.7
8 5.8 24.5 54.8 48.7
10 6.5 25 53.3 46.8
16 8.2 25 50.3 42.9
20 9.2 25 48.8 40.7
25 10.4 24.3 47.3 38.8
31.25 11.7 23.6 45.9 36.9
62.5 17 21.5 41.4 30.8
100 22 20.1 38.3 26.8
155 28.1 18.8 35.5 22.9
200 32.4 18 33.8 20.7
300 41 16.8 32.3 17.2
350 44.9 16.3 30.2 15.9

What should we do if the cctv monitoring project exceeds 100 meters?

We know Category 5 and Category 6 cable can transfer signal approxmitely 100 meters, even Category 6 standard network cable, it can only up to 120 meters. Almost all network cable in market can not exceed 90 meters in engineering construction.

How to increase the transmission distance to 300 or more than 300 meters?

24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire

A lan cable switch (relay device) can be installed between the two pieces cables. In theory, we can add up to four switches during cctv installation. If you install 4 switches to connect 5 network segments, the theoretical maximum transmission distance can reach 500m. The switch has the function of amplifying the signal, and the network signal will be strengthened.

However, the signal may be unstable after the third-stage amplification of the switch. We suggest to add no more than two lan cable switches to solve the transmission problem within 300 meters.

Lan Networking Cables Packing for Global Market

24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire

Networking Cable Production Line

24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire24AWG 4 Pairs Bare Copper Solid BC Bulk CAT5E Cable Indoor Blue PVC Twisted Wire

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
