Zipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / Pigtail
Zipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / Pigtail
Zipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / Pigtail
Zipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / Pigtail
Specifications
Brand Name :
OEM Produce
Model Number :
ZCC
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
100-300usd
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Jacket :
PVC or LSZH
Type :
ZCC Zipcord Interconnect
Application :
fiber network for Jumper or Pigtail
Fiber :
Fujikura G652D
Indoor or Outdoor :
Indoor Fiber Optic Cable
Description

ZCC Zipcord Interconnect Indoor Fiber Optic Cable for Jumper or Pigtail

ZCC Indoor Cable
ZCC Zipcord Interconnect Cable


Description

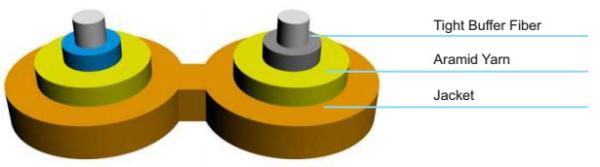

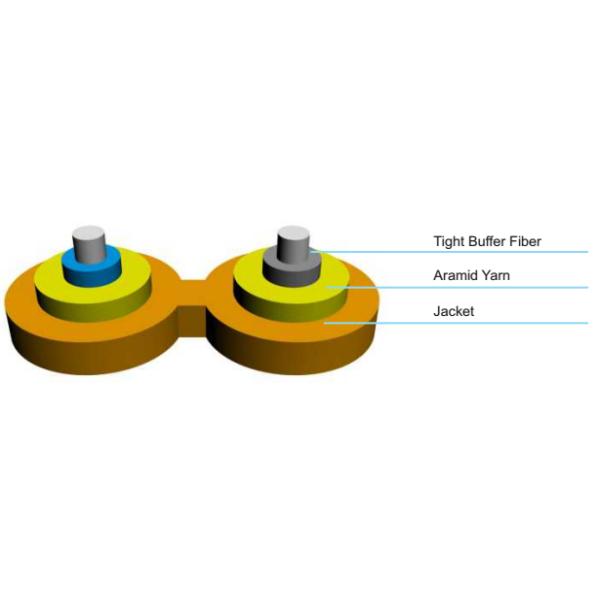

ZCC Zipcord Interconnect cable use Φ900µm or Φ600µm tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a figure 8 PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.


Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D

Applications
Optical fiber jumper or pigtail.
Indoor riser level and plenum level cable distribution.
Interconnect between instruments, communication equipments.

Standards
Comply with Standard YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11, etc; and PVC cable meet the requirements of UL approval OFNR and OFNP; Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C or OFNR certification.

Characteristics
Tight buffer fiber easy of stripping.
Tight buffer fiber have excellent flame-retardant performance.
Aramid yarn as strength member make cable have excellent tensile strength. The outer jacket material have many advantages such as anti-corrosion,anti-water, anti-ultraviolet radiation,flame-retardant and harmless to environment etc.

Zipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / Pigtail

Optical Characteristics

Fiber Type Attenuation Overfilled Launch Effective Modal 10Gb/s Ethernet Min Bending
Bandwidth Bandwidth link length Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
BI-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
BI-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5


Structure and Technical Specifications

Cable Cable Cable Weight TBF Tensile Strength Crush Resistance
Diameter (kg/km) Diameter (N/100mm) (N/100mm)
Code (mm) PVC Jacket LSZH Jacket (μm) Short Term Long Term Short Term Long Term
1.6 (3.4±0.3)×(1.6±0.3) 4.8 5.3 600±50 80 40 500 100
1.9 (4.0±0.3)×(1.9±0.3) 8.0 8.7 900±50 200 100 500 100
2.8 (5.8±0.3)×(2.8±0.3) 11.6 14.8 900±50 200 100 500 100

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.Zipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / PigtailZipcord Interconnect Indoor Fiber Optic Cable ZCC For Jumper / Pigtail

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
