BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose
BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose
BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose
BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose
Specifications
Brand Name :
OEM Produce
Model Number :
BOC
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
100-300usd
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Jacket :
PVC or LSZH
Type :
BOC
Application :
Networking, CATV, HTTP, HTTS
Fiber :
Simplex Subunit
FRP :
FRP Strength Member
Description

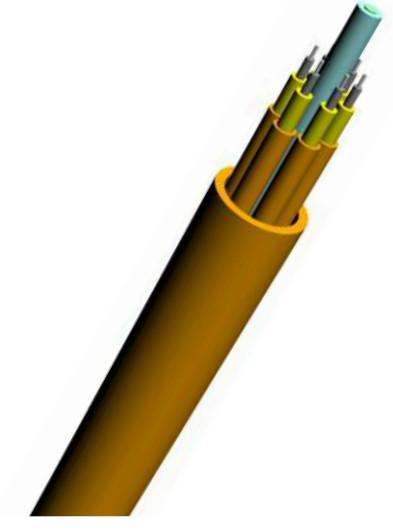

BOC Indoor Fiber Optic Cable use Simplex Subunit and FRP Strength Member

BOC Indoor Cable
BOC Multi Purpose Breakout Cable


Description

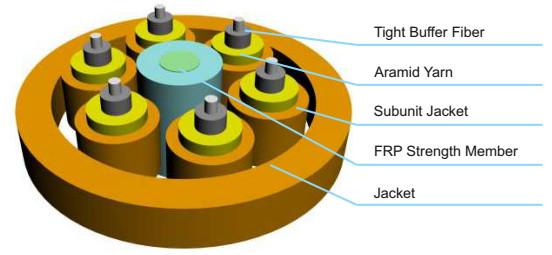

BOC Multi-Purpose Break-Out cable use simplex cable (Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.

Standards

Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc;

and PVC cable meet the requirements of UL approval OFNR; Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C.

Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D

Characteristics

Stranded non-metallic strength member structure ensure the cable ensure larger tensile strength.
The outer jacket material have many advantages such as anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength.

Applications

Indoor any purpose cable distribution.
Backbone distribution cable in a building.

BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose

Optical Characteristics

Fiber Type Attenuation Overfilled Launch Effective Modal 10Gb/s Ethernet Min Bending
Bandwidth Bandwidth link length Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
BI-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
BI-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5


Structure and Technical Specifications

Fiber Cable Cable Weight Tensile Strength Crush Resistance
Count Diameter
(mm)		 (kg/km) (N/100mm) (N/100mm)
PVC Jacket LSZH Jacket Short Term Long Term Short Term Long Term
4 7.4±0.5 50 56 440 130 1000 300
6 8.4±0.5 66 74 660 200 1000 300
8 9.8±0.5 91 101 660 200 1000 300
12 12.4±0.5 140 155 660 200 1000 300
18 12.4±0.5 140 155 1320 400 1000 300
24 14.4±0.5 181 201 1320 400 1000 300
36 16.4±0.5 208 255 1320 400 1000 300
48 19±0.5 280 344 1320 400 1000 300

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.BOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi PurposeBOC Indoor Simplex Fiber Optic Cable , Breakout Fiber Optic Cable Multi Purpose

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
