Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53
Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53
Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53
Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53
Specifications
Brand Name :
OEM Produce
Model Number :
GYXTW53
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
100-300usd
Supply Ability :
1000km/ month
Delivery Time :
15days
Packaging Details :
2000m/ wooden drum
Type :
GYXTW53 Uni-Tube
Armored :
Double Armored
Application :
FTTX Direct Buried Outdoor
loose Tube :
Gel-Filled
Jacket :
PE Double Jacket
Description

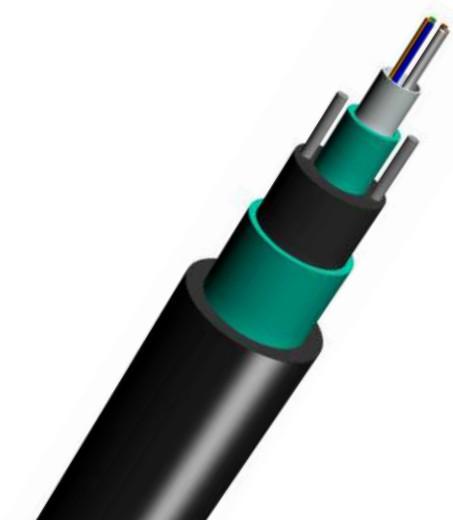

GYXTW53 Uni-Tube Outdoor Fiber Optic Cable Gel-Filled Double Jacket / Double Armored

GYXTW53 Uni-Tube Gel-Filled Double Jacket / Double Armored Optical Fiber Cable


Description

Armored Uni-Tube Double Jacket /Double Armored cable are designed with the flexibility and versatility required for today's most demanding installations, including direct buried. Excellent tensile strength, double jacket and double armor provides safe rodent resistant.Two parallel steel wire provides extra tensile resistant .

Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features

Up to 24 fibers.

Uni-tube gel-filled construction for superior fiber protection. Excellent tensile strength, double jacket and double armor provides safe rodent protection and crush resistant.

Two parallel steel wire to enhance tensile resistant, And crush resistant.

UV and moisture-resistant design.


Applications
Conduit, Duct, Aerial/Lashed.
FTTx, Access.

Option
FRP or KFRP strength member can be choosed .
Glass yarn or Aramid yarn can be choosed.

Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53
Optical Characteristics GYx

Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) 850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm ≥500 MHz·km ≥200 Mhz·km
1300 nm ≥500 MHz·km ≥500 Mhz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm

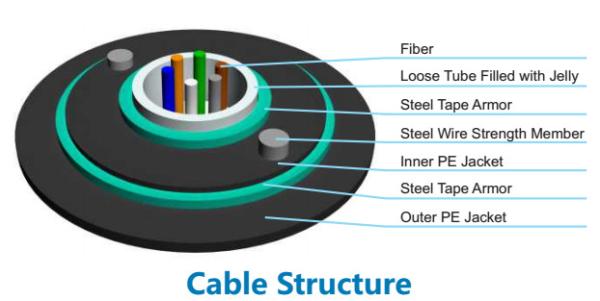

Structure and Technical Specifications

Fiber
Count		 Nominal
Diameter
(mm)		 Nominal
Weight
(kg/km)		 Allowable Tensile Load(N) Allowable Crush Resistance(N/100mm)
Short Term Long Term Short Term Long Term
2~12 12 165 300 100 1500 500

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53Gel - Filled Direct Burial Fiber Optic Cable , Aerial Fiber Optic Cable PE Jacket GYXTW53

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
