High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire
High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire
High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire
High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire
High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire
High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire
Specifications
Brand Name :
OEM Produce
Model Number :
GYXTW
Certification :
CE/ ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Supply Ability :
1000/ month
Delivery Time :
15days
Packaging Details :
wooden drum
Fiber Count :
1-24
Jacket :
Single Jacket
Armor :
Single Armored
Type :
GYXTW+2x1.5mm2
Fiber :
Uni-Loose Tube Single Mode
Application :
Networking, CATV, HTTP, HTTS
Description

GYXTW 4B1+2C 1.5MM2 multi-one network Electric Composite Fiber Optic Cable

Armored Loose Tube Single Jacket/ Single Armore Cable

Temprature Range

Operating: -40℃ to +70℃

Storage:-50℃ to +70℃

Installation: -50℃ to +70℃

Bending Radius:

Static: 10D

Dynamic: 20D

Description:

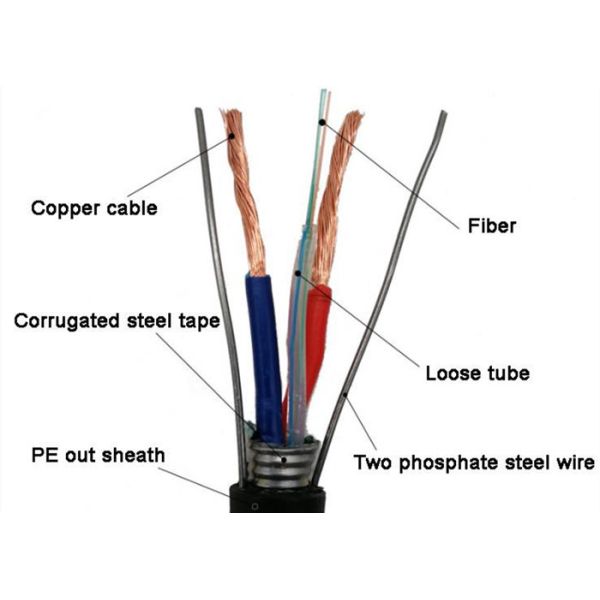

Armored fiber optic cable with fibers placed in loose buffer tube stranded around central strength member. The cable core is protected with jelly to prevent water intrusion and migration. With a corrugated steel tape armor which provides rigid protection, rodent resistance and cover with a black Polyethylene outer jacket.

Features:

Loose tube gel-filled construction for superior fiber protection.

Corrugated steel tabe armor to protect cable from mechanical damage and rodant protection. UV and moisture-resistant design.

Opto and electricity integrated, fully save pipeline resources

Electric and optical cable maintain relatively independent structure, easy to import, export and link when installation.

Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs.

Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.

Larger oprating temprature range and constructure temprature range.

Applications:

Backbones and Access.

Installed in ducts, underground conduits and direct burial.

Structure and Technical Specifications GYXTW(2-24F)

Fiber Count Nominal Diameter(mm) Nominal Weight(kg.km) Allowable Tensile Load(N) Allowable Crush Resiatance(N/100mm)
Short Term Long Term Short Term Long Term
2~12 10.0 60 1500 600 1500 600
14~24 10.6 85 1500 600 1500 600

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.High Strength Outdoor Multimode Fiber Optic Cable GYXTW 4B1+2C 1.5MM2 Power Wire

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
