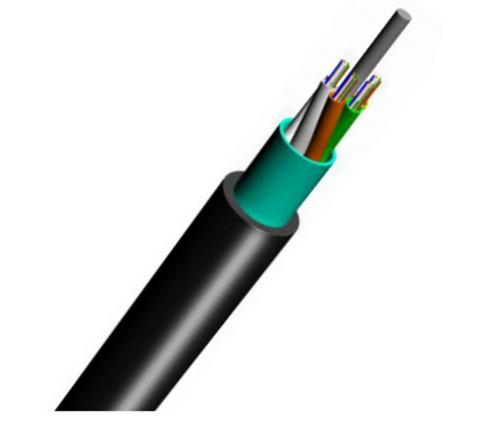

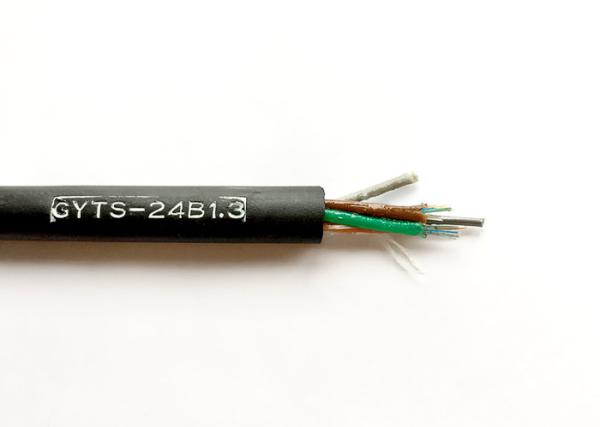

GYTS PSP Armored Direct Buried Outdoor Fiber Optic Cable G.652 Single Mold 288 Fibers

Description

Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried.

Temperature Range

Operating : -40ºC to +70ºC

Storage : -50ºC to +70ºC

Installation : -30ºC to +70ºC

Bending Radius:

Static 10D

Dynamic 20D

Features

The fiber 250μm are positioned in a loose tube made of a high mudulus plastic. Up to 288 fibers.

The tubes are filled with a water-resistant filling compound. Loose tube gel-filled construction for superior fiber protection.

Steel PE laminate (PSP) tape armor to protect cable from mechanical damage.

A steel wire act as a central strength member.

UV and moisture-resistant design.

Applications

Conduit, Duct or Aerial/Lashed. Backbone and Access.

Option

FRP or Steel central strength member can be choosed.

Dry core structure available for ease of handling.

Flame-retardant jacket can be provided.

Optical Characteristics GYTS

Structure and Technical Specifications

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.

What Is Fiber Optic Cable?

A fiber optic cable is a network cable that contains strands of glass fibers inside an insulated casing. They're designed for long-distance, high-performance data networking, and telecommunications. Compared to wired cables, fiber optic cables provide higher bandwidth and transmit data over longer distances. Fiber optic cables support much of the world's internet, cable television, and telephone systems.

How Fiber Optic Cables Work

A fiber optic cable consists of one or more strands of glass, each only slightly thicker than a human hair. The center of each strand is called the core, which provides the pathway for light to travel. The core is surrounded by a layer of glass called cladding that reflects light inward to avoid loss of signal and allow the light to pass through bends in the cable.

The two primary types of optical fiber cables are single mode and multi-mode. Single-mode fiber uses extremely thin glass strands and a laser to generate light, while multi-mode optical fiber cables use LEDs.

Single-mode optical fiber networks often use Wave Division Multiplexing techniques to increase the amount of data traffic that the strand can carry. WDM allows light at multiple different wavelengths to be combined (multiplexed) and later separated (de-multiplexed), effectively transmitting multiple communication streams through a single light pulse.
