Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket
Specifications
Brand Name :
OEM Produce
Model Number :
F660
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
90.0usd/ 305m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Jacket :
LSZH
Useful :
CATV Wire
Braid :
63% Tinned Copper Braid
Conductor :
Full Copper
Type :
75 Ohm Coaxial Cable
Description

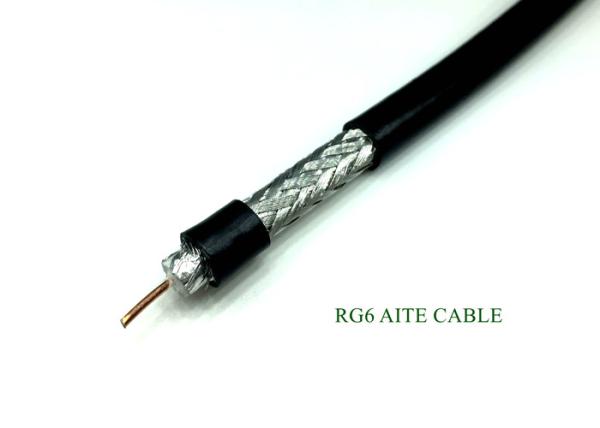

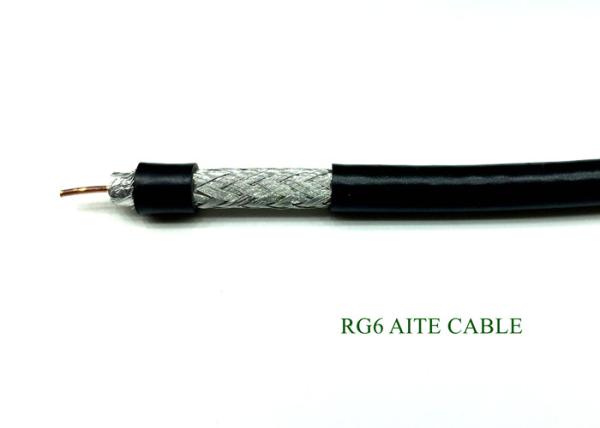

LSZH Full copper F660 (RG6) CATV Wire Tinned Copper Braid 75 Ohm Coaxial Cable

RG6 Standard

Construction Material Diameter(mm)
Inner Conductor BC 1.02
Dielectric Foam PE 4.57
First Shield Bonded AL Foil 18
Second Shield TC Braid 60%
Outer Jacket LSZH 6.91

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0

Return Loss 5-1000MHz(dB)

≥22

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket

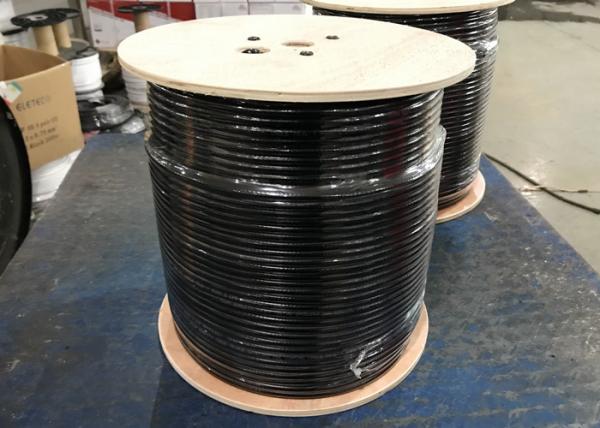

Cables Loading the Container and Delivery to Port

Full Copper F660 RG6 75 Ohm Coaxial Cable Tinned Copper Braid LSZH Jacket

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
