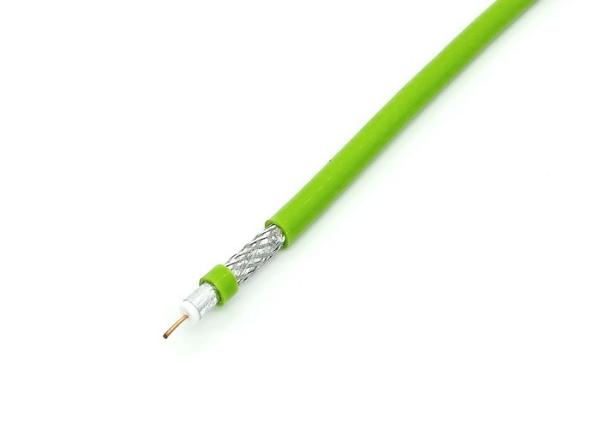

RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard
Specifications
Brand Name :
OEM Produce
Model Number :
RG6 CATV Coaxial Cable
Certification :
CPR. CE. ROHS
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
7.0usd/ 100m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Condoctor :
18 AWG CCS
Insulation :
Foam PE
Shield :
AL Foil+Braiding
Color :
Green or Customized
Packing :
100M Coil/ 305M Wooden Drum
Usage :
CATV/ SATV
Jelly :
with or without
Description

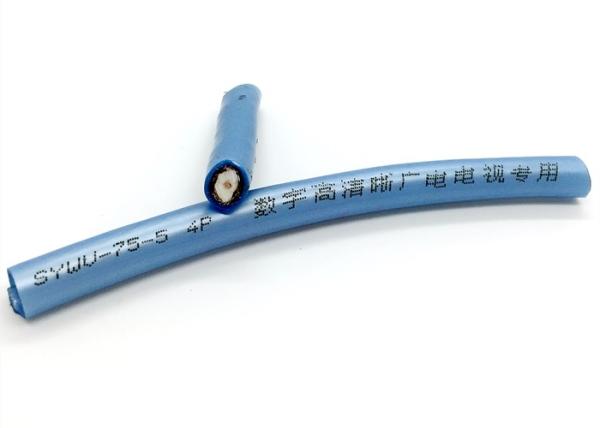

RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard

RG6 Standard

Construction Material Diameter(mm)
Inner Conductor CCS 1.02
Dielectric Foam PE 4.57
First Shield Bonded AL Foil 18
Second Shield BC Braid 80%
Outer Jacket PVC 6.91

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0

Return Loss 5-1000MHz(dB)

≥22

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

RG6 Coaxial Cable 305M/1000M Wooden drum Packing

RG6U 75 Ohm Coaxial Cable 18 AWG CCS Green PVC CATV SYWV-75-5 Standard

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
