Specifications
Place of Origin :
Hangzhou, China
Brand Name :
OEM Produce
Certification :
CPR. CE. ROHS.
Model Number :
RG6MS
MOQ :
10km
Price :
31.00usd/305m
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Delivery Time :
20days after deposit
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Conductor :
1.02CCS
Shield :
Tri Shielded
Jacket :
White PVC
Self Support :
1.2/1.3Galvanized Steel
Cable Shape :
8 Figure
Application :
CATV Aerial
OEM :
Available
Description

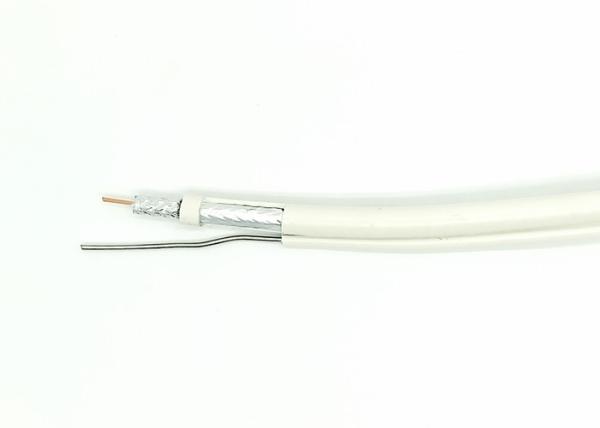

RG6-M 75 Ohm Coaxial Cable White PVC Outdoor with Galvanized Steel Messenger CATV Drop Wire

we are professiona coaxial and lan cable manufacturer in China.

RG6-M Spe: 1.02mm CCA+4.57mm FPE+16x4x0.12mm AL +6.9mm PVC Black+1.23mm MS

Packing: 305m/wooden drum

Application:

These cables are suitable for laying branch stretches of long TV and Triple Olay broadband distribution systems, And there cables and excellent means of distributions for any terrestrial and satellite TV System as well as telephone and internet services,

Coaxial cables with messenger ad especially designed for hang-up applications and have a galvanized -steel wire, jacketed in parallel with cable for easy hanging-up.

Advanced Features:

All of these cables have some common features including:

--Closed cell foamed PE Dielectric

--Attenuation Swept from 5MHz-1GHz

--Long-lasting stability of signal attenuation thanks to physical gas injected foam PE dielectric technology(skin-foam-skin)

--Coaxial cables with PE outer sheath, strong enough to protect the coaxial core from the environment, must be used for outer/ underground installations. Temprature rating: -55℃ to 85℃

--Series of flooding comqound meterials are available

--Cable marked in Footage/ Meters

Details

Construction Material Diameter(mm)
Inner Conductor CCS 1.02
Dielectric Foam PE 4.57
First Shield Bonded AL Foil 18
Second Shield AL Braid 60%
Outer Jacket PVC 6.9
Messenger Galvanized Steel 1.3

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0
Return Loss 5-1000MHz(dB) ≥22
Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

Coaxial Cable 305M/1000M Wooden drum Packing

RG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel Messenger

Finished Cables Loading the Container and Delivery to Port

RG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel Messenger

OEM Packing As Required

RG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel MessengerRG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel Messenger

Testing

RG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel Messenger

Cable Raw Material

RG6-M 75 Ohm Self Supporting Cable , CATV Coaxial Cable 75 Ohm With Galvanized Steel Messenger

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
