QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire
QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire
QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire
QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire
QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire
QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire
Specifications
Brand Name :
OEM Produce
Model Number :
QR500
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
customized
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :

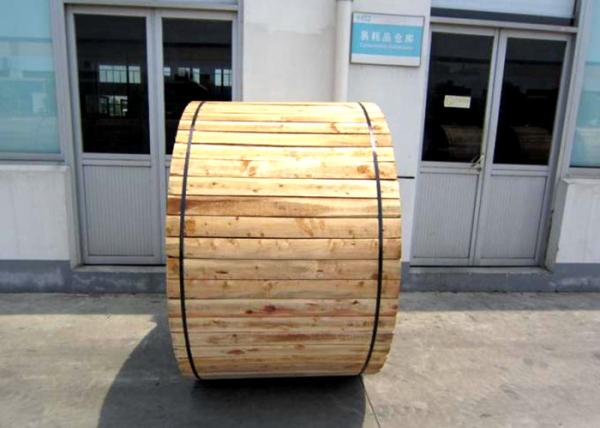

500M/ 1000M/ Wooden Drum
Type :
QR500M 75 Ohm Coaxial Cable
Shield :
Weld AL Tube
self support :
Galvanized Steel Messenger Drop Wire
Description

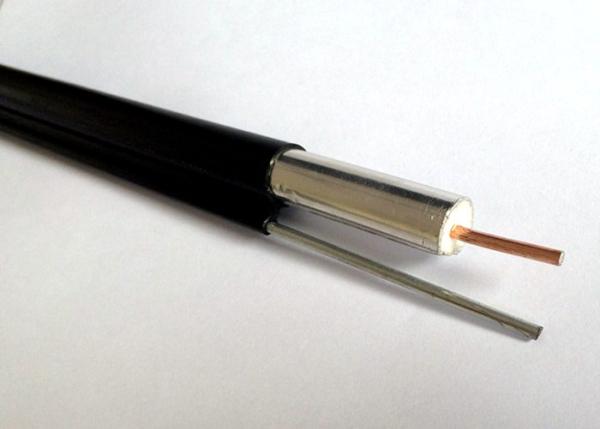

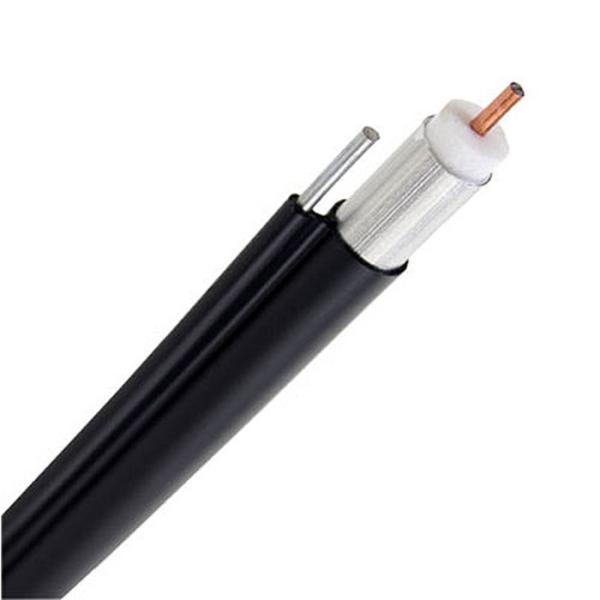

QR500M Weld AL Tube 75 Ohm Coax Cable CATV With Galvanized Steel Messenger Drop Wire

Coaxial cable QR500M Trunk

Construction
Inner Conductor Material CCA
Diameter(mm) 2.77
Dielectric
 Material Foam PE
Diameter(mm) 11.43
Shield Material Solid AL Tube
Diameter(mm) 12.7
Outer Jacket Material PE
Diameter(mm) 14.22
Messenger Material Galvanized Steel
Diameter(mm) 2.77

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 87.0
Return Loss
5-1000MHz(db) ≥22
Screening Effectiveness
5-1000MHz ≥22

Attenuation(@20℃)

Frequency (MHZ) Max Attenuation (dB/100m)
5 0.52
55 1.77
83 2.17
211 3.58
250 3.94
300 4.30
350 4.69
400 5.02
500 5.68
750 7.09
865 7.68
1000 8.27
