QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable
Specifications
Brand Name :
OEM Produce
Model Number :
QR500
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
FOB Shanghai Price: 520.0 USD/1000m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :

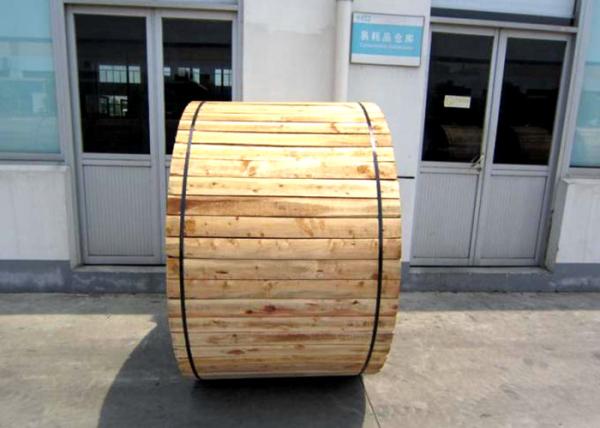

500M/ 1000M/ Wooden Drum
Type :
QR500 AL Tube
spec :
Trunk 75 Ohm Coaxial Cable
Application :
CATV Signal Transformation
Manufacturer :
OEM Factory
Description

QR500 AL Tube Shielded Coaxial Cable , CATV Trunk Coaxial Cable

Coaxial cable QR500 Trunk

Construction LMR240
Inner Conductor Material CCA
Diameter(mm) 2.77
Dielectric
 Material Foam PE
Diameter(mm) 11.43
Shield Material Solid AL Tube
Diameter(mm) 12.7
Outer Jacket Material PE
Diameter(mm) 14.22

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 87.0
Return Loss
5-1000MHz(db) ≥22
Screening Effectiveness
5-1000MHz ≥22

Attenuation(@20℃)

Frequency (MHZ) Max Attenuation (dB/100m)
5 0.52
55 1.77
83 2.17
211 3.58
250 3.94
300 4.30
350 4.69
400 5.02
500 5.68
750 7.09
865 7.68
1000 8.27
