21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV
Specifications
Brand Name :
OEM Produce
Model Number :
21VATC
Certification :
CPR. CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
7.0usd/ 100m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :

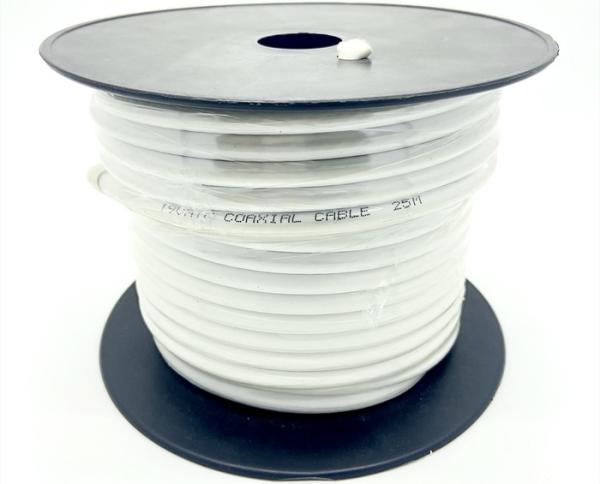

100M. 200M. 300M. 1000FT. 500M. Reel
Conductor :
CCS/CU
Jacket :
PVC or LSZH
Color :
White or Customized
Length :
100M/ 305M
OEM :
Available
Application :
SATV, CATV
Description

21VATC CATV 75 Ohm Coaxial Cable to connect Antenna Dish and Set Top Box to TV

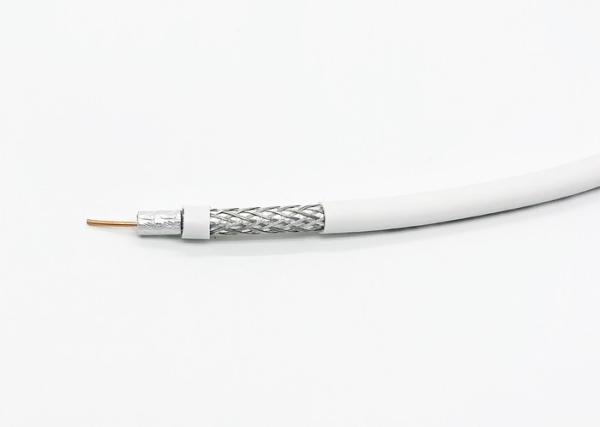

21VATC Series Coaxial cable

21VATCStandard

Construction Material Diameter(mm)
Inner Conductor CCS 1.02
Dielectric Foam PE 4.57
First Shield Bonded AL Foil 18
Second Shield BC Braid 80%
Outer Jacket PVC 6.91

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0

Return Loss 5-1000MHz(dB)

≥22

Return Loss 1000-3000MHz(dB)

≥20

Attenuation(@20℃)

Frequency (MHZ) Min Attenuation (dB/100ft) Max Attenuation (dB/100m)
5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6

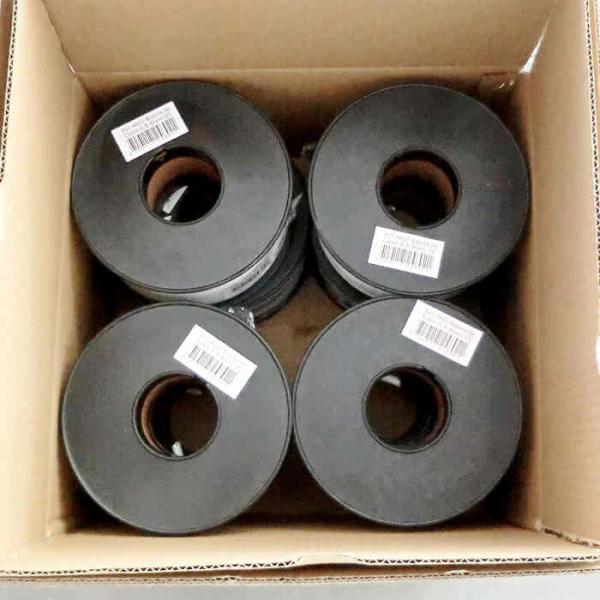

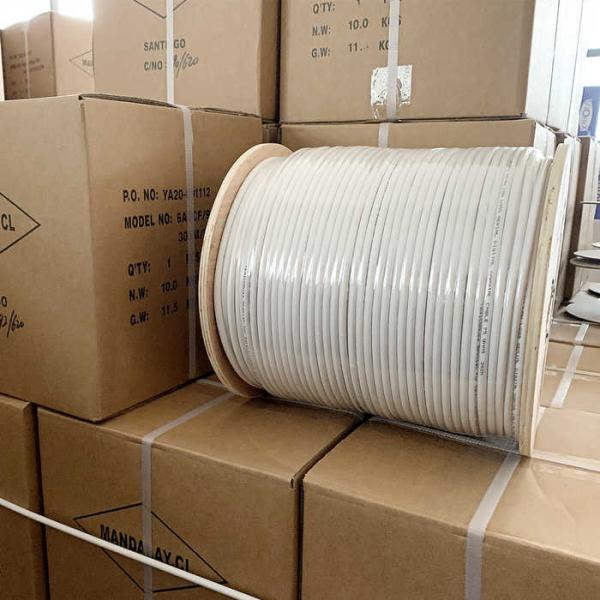

Coaxial Cable 305M/1000M Wooden drum Packing

21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV21VATC CATV 75 Ohm Coaxial Cable Connect Antenna Dish And Set Top Box To TV

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
