Specifications
Brand Name :
SSI-HDCZ
Model Number :
Customized
Place of Origin :
China
MOQ :
1
Price :
US $1,500,000-5,000,000/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40 sets / year
Delivery Time :
6 months after receipt of advance payment
Packaging Details :
Wooden case or bare
Certification :
manufacture certificate
product :
Stacking and Reclaiming System
capacity :
2200 t/h
painting :
Jotun
color :
yellow
advantage :
robust design
benefit :
low maintenance
Description

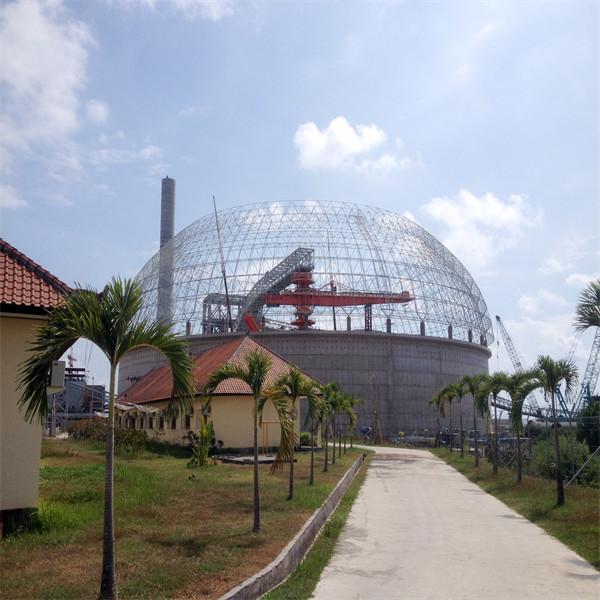

Stacking and reclaiming system at stockyard to stacking and reclaiming coal

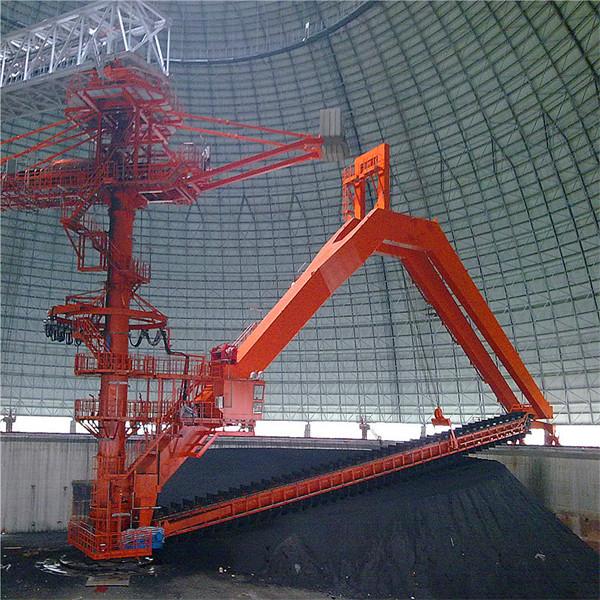

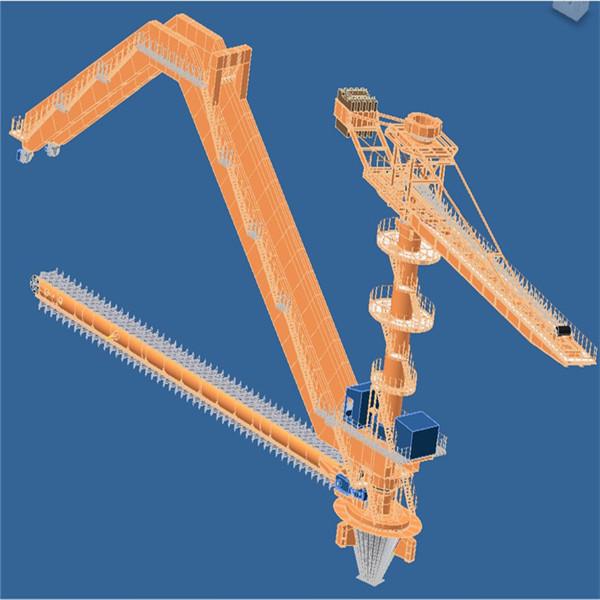

Circular gantry scraper stacker and reclaimer is mainly used in building materials, coal, metallurgy, electric power, port and other industries, and is mostly used to stack limestone or coal and other bulk materials. The cantilever of the stacker is equipped with a belt conveyor, which passes through the steel structure grid roof of the circular stockyard from the belt conveyor on the trestle, and the input materials complete the ring conical stacking through the belt conveyor on the cantilever of the stacker; The reclaimer completes the reclaiming work via three linkinge processes: traveling system, luffing system and scraper system. The scraper reclaimer scrapes the materials into the conical hopper under the central column along the slope of the pile, and outputs the materials through the vibrating feeder and underground belt conveyor.

Feature

product Stacking and Reclaiming System
painting Jotun
color yellow
capacity 2200 t/h
character heavy duty
advantage robust design
benefit low cost
material handling coal or limestone

Some pictures of main components of circular stacker and reclaimer

1. Stacking steel structure, cantilever belt conveyor

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

2.King column and slewing mechanism of circular stacker and reclaimer

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

3.Gantry stacker

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

4.Reclaimer luffing mechanism:

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

5.Scraper reclaimer

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

6.Hydraulic system

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

7. Lubrication system

Stacker And Reclaimer System For Coal Stockyard 2200 t/h

8.Water spray dust controlled system

Stacker And Reclaimer System For Coal Stockyard 2200 t/h
