Specifications
Brand Name :
SSI
Model Number :
customized
Place of Origin :
China
MOQ :
1
Price :
US $1,500,000-5,000,000/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets / year
Delivery Time :
6 months after receipt of advance payment
Packaging Details :
Wooden case or bare
Certification :
manufacture certificate
material handling :
coal iron ore
painting :
HEMPEL
color :
orange
capacity :
1000 t/h
character :
continuous
product :
Ship Unloader
price :
low cost
benefit :
low maintenance
Description

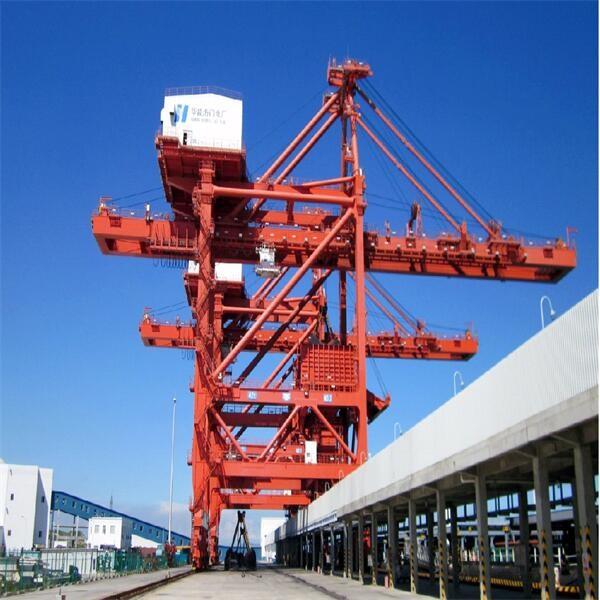

Grab Type Ship Unloader Cost Effective Continuous Ship Unloader Bulk Material Handling Ship Unloader

Mechanical (electric) differential bridge-type ship unloader is a suite of effective, reliable and high performance unloading appliances customized to the port and terminal business handling dry bulk cargoes.
Mechanical (electric) differential bridge-type ship unloader is most advanced and widely used today. Its hoisting system, opening system and drawing system, are controlled by four drums. It was particularly designed for specializing in professional bulk handling solutions that provide very highest levels of performance.

The driving method of traveling mechanism is multi drive. Traveling mechanism is composed of driving device, traveling support device and safety protection device. The traveling support device adopts the wheel group with balance beam, the wheel adopts the rolling bearing wheel with double wheel edges, and the number of driving wheels shall not be less than 50% of the total number of wheels.

Most of the driving unit are three in one reducers, which can also be combined by reducers, brakes and motors through couplings

All the ship unloaders are designed based on our client`s technical specifications and applications, so the technical discussion meeting is essential before the project proposal stage.

model Self-propelled trolley Main and auxiliary trolley Mechanical differential Electric differential
weight(%) 100% 80% 60~65% 60%
stability 1.4 1.5 1.7~1.8 1.7~1.8
Wire rope lengtg 1 6 2.5 2.5
Power consumption 1 2.5 1.1 1.2
Operating cost(%) 100% 95% 90% 90%
Fault and maintenance Breakdown rate high and hard to maintain Breakdown rate low and easy to maintain but wire rope system is complicated Wire rope system is simple, easy to change gear reducer is specific design,hard to maintain and change Wire rope system is simple,gear reducer is standard,easy to maintain,electrical system is complicated
Cost of fundamental and facilities(%) 100% 95% 85% 85%

model Mechanical differential Electric differential
weight(t) 1100 1050

Rail distance(m)

Wheel distance(m)

18~28

18

18~28

18

No of wheel

Wheel pressure T

Driver KW

40

50

7.5*10

40

50

7.5*10
Luffing mechanism KW 90~110 90~110
Four drums mechanism KW

Start 2X500KW

Runing 315KW

 4*400


Main structure of bridge-type grab ship unloader

Mechanism of bridge-type grab ship unloader

1.Traveling mechanism

The driving method of traveling mechanism is multi drive. Traveling mechanism is composed of driving device, traveling support device and safety protection device. The traveling support device adopts the wheel group with balance beam, the wheel adopts the rolling bearing wheel with double wheel edges, and the number of driving wheels shall not be less than 50% of the total number of wheels.
Most of the driving unit are three in one reducers, which can also be combined by reducers, brakes and motors through couplings

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

2. Main structure of bridge-type ship unloader

The connection of the main steel structure of the ship unloader adopts rigid connection, and the rigidity of the whole machine is strong enough.
Rolling T-section steel is adopted for the front and rear girder of the ship unloader and the trolley rail beam without fillet weld, to avoid weld fatigue cracking that may occur when the trolley wheels are rolled back and forth.

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

3. Hopper system

The hopper unloading system of the ship unloader is composed of coal hopper, feeder, fork hopper, coal spreading baffle, windshield, two way chute and buffer bracket.

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

4. Grab bucket hoisting mechanism(mechanical differential four drums)

The traveling of the mechanical differential grab ship unloader trolley depends on a driving motor to connect the two differential reducers through the a coupling. Through the differential transformation of the gearbox, the grab lifting is transformed into the transverse movement of the trolley.

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

5.Grab bucket(wire rope reeving system)

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

6. Luffing mechanism

The luffing mechanism of bridge-type grab ship unloader is composed of motor, brake, reducer, drum and safety brake.

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

7.Wire rope reeving system of luffing mechanism

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

8. Cantilever safety hook device

When the cantilever of the ship unloader is luffing to 80 °, the safety hook device is used to hang the cantilever and loosen the steel wire rope at the same time. The safety hook is usually driven by hydraulic cylinder or electro-hydraulic actuator.

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

9.Wire rope reeving system of wire rope support trolley

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Overview of production process

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

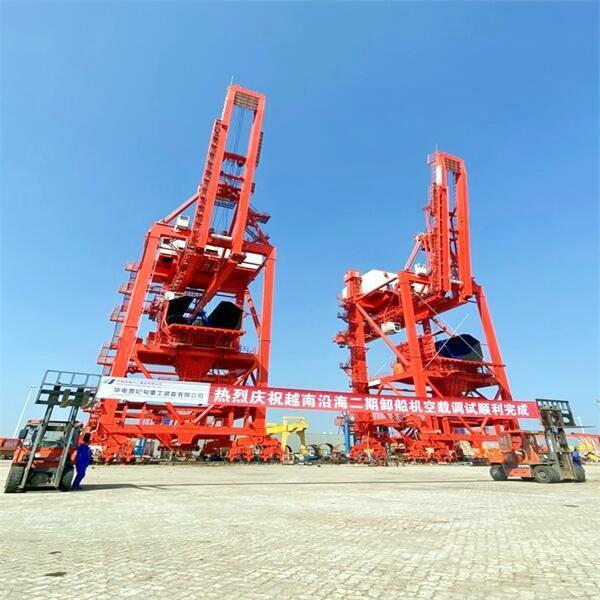

Photos of our factory

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Product tags

truck unloader for bulk

,

maa conveyor roller spares

,

bulk conveyor
Send your message to this supplier
Send Now

Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Ask Latest Price
Product Detail
Brand Name :
SSI
Model Number :
customized
Place of Origin :
China
MOQ :
1
Price :
US $1,500,000-5,000,000/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Supplier
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling
Cost Effective Continuous Grab Type Ship Unloader For Bulk Materials Handling

Shanghai Sunshine Industry Technology Co., Ltd.

Active Member
4 Years
shanghai, shanghai
Since 1992
Business Type :
Manufacturer, Agent, Importer, Exporter, Trading Company, Seller
Main Products :
Bulk Cargo Handling Equipment, Bulk Material Handling Equipment, Large Part Machining
Total Annual :
123500000-231600000
Employee Number :
650~1200
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Grab Ship Unloader
MachineU China Products Machinery Plastic & Rubber Processing Machinery Plastic Raw Material Machinery Plastic Loader
Contact Supplier
Submit Requirement
