3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts
Specifications
Brand Name :
BULLDOG,NICEPARTS
Model Number :
Atlas Copco SB452
CertifiCATEion :
ISO:9001
Place of Origin :
Guangzhou, China
MOQ :
MOQ:1set
Price :
Consultation by letter
Payment Terms :
T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability :
100set
Delivery Time :
3-10 Days After Payment received
Packaging Details :
Carton packaging
Material :
PTFE+HNBR+PU
Color :
Blue
AppliCATEion :
Atlas Copco Hydraulic Breaker
Type :
Hydraulic breaker seal kit,Hydraulic Breaker Hammer seal kit
Weight :
1KG
TOOL :
95mm
Description

Model:Atlas Copco SB452 Hydraulic hammer breaker Service repair kit
Part Name:Hydraulic breaker seal kit,Hydraulic hammer seal kit
Working tool diameter:95MM
Part Number:3315312790
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
CertifiCATEEion: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:BULLDOG, OEM or as Required
Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability:300
MOQ:1set

Parts list

Item Part No. Name Qty
1 - Breaker body 1
2 3315312480 Bushing standard, complete 1
3 - Bushing, 1
4 3315353600 Scraper ring 1
5 663714700 O-RING 4
6 3315312300 Stop ring 1
7 686100009 Plug, 2
8 686644207 PLUG 5
9 3315395200 Water Nossle 2
10 3315155800 Lock pin 1
11 108169129 Spring pin, option, 1
12 3315141900 LOCK BUFFER 1
13 3315155700 Tool retainer 2
14 686371801 PLUG 6
15 3315303500 COIL SPRING 1
16 3315303201 Diaphragm support 1
17 3315416300 Diaphragm 1
18 3315303100 Diaphragm cover 1
19 211196544 Hexagon socket screw Screw with extra high fatigue strength. 8
20 686371805 PLUG 1
21 3115329002 SEAL RING 1
22 663212000 O-RING 1
23 3315366000 VALVE 1
24 101414000 PIN 1
25 663211400 O-RING 1
26 3315365800 PRESS.REL.VALVE 1
27 - Pressure relief valve 1
28 663212141 O-RING 1
29 663210421 O-RING 1
30 661200401 BACK-UP RING 1
31 580001845 Nipple, complete 1
32 664000004 SEAL RING 1
33 - NIPPLE 1
34 663210217 O-RING 　
35 3361353486 Cap 2
36 544215300 GREASE NIPPLE 1
37 3315369653 Restrictor, complete 1
38 663210421 O-RING 1
39 663212141 O-RING 1
40 - Restrictor, standard, 1
41 3315336700 PLUG 1
42 3315362820 Valve cover 1
43 663211491 O-ring, 1
44 663990026 Seal ring, 2
45 3315312100 Control valve 1
46 665090014 SEAL RING 4
47 665909964 Wiper 1
48 665070147 Piston rod seal 1
49 3315312000 Liner 1
50 663990032 Seal ring 9
51 3315311900 Piston 1
52 665070148 Piston rod seal 1
53 663210417 O-ring, 1
54 3315312600 Back head 1
55 147155503 SCREW, HEX HEAD 8
56 3315244881 CHECK VALVE 1
57 3315280800 VALVE RUBBER 1
58 - CHECK VALVE 1
59 3315307700 Base plate 1
60 3315323890 Set of eight screws, complete 1
61 - Nut, 8
62 - Screw, 8
63 211110467 Screw, 2

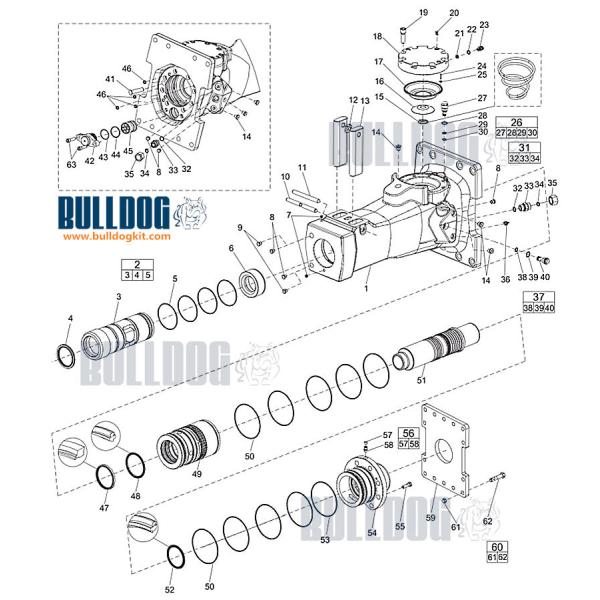

Parts exploded view

3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts

Company warehouse

3315312790 Hydraulic Breaker Seal Kit Atlas Copco SB452 Parts

FAQ

1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.

2. Q: Can i make a small order first?
A: Yes, of course.

3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.

4. Q: Have you support the OEM or not?

A: Sure, we support the OEM,BULLDOG or as required.

5. Q: How can i pay the goods?

A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc

6. Q: How to ship the products?

A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.

7. Q: What’s the delivery time?

A: The goods can be shipped at 2-5 working days after receiving payment.
