Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9
Specifications
Brand Name :
BULLDOG,NICEPARTS
Model Number :
Hyundai Hyundai R330LC-9,R260LC-9,R250LC-9,R300LC-9 Travel motor seal kit
CertifiCATEion :
ISO:9001
Place of Origin :
Guangzhou, China
MOQ :
1set
Price :
Consultation by letter
Payment Terms :
T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability :
100set
Delivery Time :
3-10 Days After Payment received
Packaging Details :
Carton packaging
Type :
Hyundai Hyundai R330LC-9,R260LC-9,R250LC-9,R300LC-9 Hydraulic Travel Motor seal kit
Material :
PU+NBR
Color :
Black+Blue+yellow
For :
Hydraulic Travel Motor
Quality :
High-Quality
Condition :
100%new
Stock :
In stock
Model :
Komatsu excavator
Packing :
standar packing with safety
Description

XKAY-00278 Travel Motor Seal Kit For Hyundai R330LC-9,R260LC-9,R250LC-9,R300LC-9 Hydraulic Excavator

Model:Hyundai XKAY-00278 Travel motor seal kit
Part number:XKAY-00278
Motor number:31Q9-40031,31Q9-40032,31Q9-40033,31Q9-40010,31Q9-40011
For:Hyundai R330LC-9,R260LC-9,R250LC-9,R300LC-9
Material:PU+NBR+PTFE
CertifiCATEEion:IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram, Paypal, Alipay
Delivery method:DHL,FedEx,UPS,etc.
Supply Ability:50
MOQ:1set

Parts list

NO. Part number name quantity
* 31Q8-40060 Travel Motor Assy 1
　 31Q8-40061 Travel Motor Assy 1
　 31Q8-40062 Travel Motor Assy 1
　 31Q8-40063 Travel Motor Assy 1
*-1 31Q8-40040 . Travel Motor Unit 1
　 31Q8-40041 . Travel Motor Unit 1
2 XKAY-01415 .. Plug 12
33 XKAY-01416 .. Casing-Valve 1
K35 XKAY-00236 .. O-Ring 1
*-12 XKAY-00238 .. Spool Kit-C/Blc Va...[T] 1
37 XKAY-00239 ... Spool-C/Blc Valve 1
38 XKAY-00240 ... Screw-Orifice 2
39 XKAY-00241 .. Damping Check Assy 2
40 XKAY-00242 .. Spring-C/Blc Valve 2
K41 XKAY-00243 .. O-Ring 2
42 XKAY-00244 .. Plunger-C/Blc Valv...[T] 2
43 XKAY-00245 .. Spring-Check 2
44 XKAY-00246 .. Stopper-Check 2
K45 XKAY-00247 .. O-Ring 4
K46 XKAY-00248 .. Ring-Back Up 1
47 XKAY-00249 .. Cap-C/Blc Valve(R) 1
48 XKAY-00250 .. Cap-C/Blc Valve(L) 1
49 XKAY-00136 .. Bolt-Socket 8
50 XKAY-00251 .. Bolt-Socket 4
51 XKAY-00252 .. Seat 2
52 XKAY-00253 .. Ball-Steel 2
53 XKAY-00254 .. Stopper 2
54 XKAY-00255 .. Plug-Hp 7
K55 XKAY-00256 .. O-Ring 7
56 XKAY-00257 .. Plug-Hp 2
57 XKAY-01130 .. Relief Valve Assy 1
57-1 XKAY-02075 ... Body 1
57-2 XKAY-02074 ... Poppet Seat 1
57-3 XKAY-02073 ... Poppet 1
57-4 XKAY-02072 ... Spring 1
57-5 XKAY-02071 ... Spring Seat 1
57-6 XKAY-02070 ... Stopper 1
57-7 XKAY-01397 ... O-Ring 1
57-8 XKAY-02069 ... Shockless Spool 1
57-9 XKAY-02068 ... Nut 1
57-10 XKAY-02067 ... Stopper Plug 1
57-11 XKAY-00875 ... O-Ring 1
57-12 XKAY-00260 ... Ring-Back Up 1
K58 XKAY-01015 .. O-Ring 2
K59 XKAY-02066 .. Back Up Ring 2
60 XKAY-00261 .. Rod-Swash 1
K61 XKAY-00262 .. O-Ring 1
62 XKAY-00263 .. Screw-Lock 1
63 XKAY-00279 .. Nut-Hex 2
64 XKAY-00265 .. Spool-Swash 1
65 XKAY-00266 .. Plug 1
K66 XKAY-00267 .. O-Ring 1
68 XKAY-00269 .. Spring-Swash 1
70 XKAY-00271 .. Bolt-Wrench 8
71 XKAY-00272 .. Bolt-Socket 4
75 XKAY-02061 .. Name Plate 1
76 XKAY-00277 .. Rivet 2
*-2 31Q9-40020 . Travel Reduction G...[T] 1
K XKAY-00278 Seal Kit[T] 1

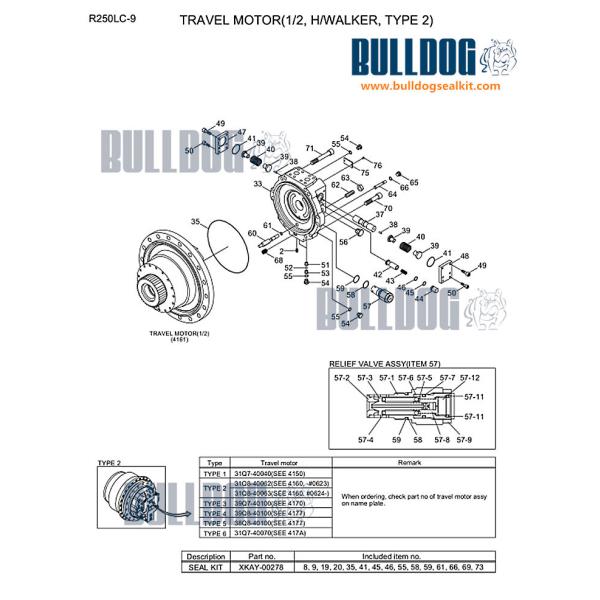

Parts exploded view

Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9

More service models

New Komatsu Style 707-99-68780 Hydraulic Cylinder Seal Kit.
This is a New Seal Kit that fits the following Models and Cylinder part numbers.
Model Num. AppliCATEEion Cylinder Rod Size (in) Bore (in) Serial Num. Part #
PC400-7, PC400LC-7 ARM 707-01-0F690 120 mm 185 mm 50001-50146 KOM-707-99-68780
PC400-7, PC400LC-7 ARM 707-01-0F691 120 mm 185 mm 50147- KOM-707-99-68780
PC400-7, PC400LC-7 ARM 707-01-0F741 120 mm 185 mm 50001- KOM-707-99-68780
PC400-7, PC400LC-7 ARM 707-01-0F810 120 mm 185 mm 50001- KOM-707-99-68780
PC400-7, PC400LC-7 ARM 707-01-0F840 120 mm 185 mm 50001- KOM-707-99-68780
PC400-7, PC400LC-7 ARM 707-01-0G370 120 mm 185 mm 50001- KOM-707-99-68780
PC400-7E0, PC400LC-7E0 ARM 707-01-0F691 120 mm 185 mm 60001- KOM-707-99-68780
PC400-7E0, PC400LC-7E0 ARM 707-01-0F691 120 mm 185 mm A87001- KOM-707-99-68780
PC400-7E0, PC400LC-7E0 ARM 707-01-0F741 120 mm 185 mm 60001- KOM-707-99-68780
PC400-7E0, PC400LC-7E0 ARM 707-01-0F741 120 mm 185 mm A87001- KOM-707-99-68780
PC400-7E0, PC400LC-7E0 ARM 707-01-0F810 120 mm 185 mm 60001- KOM-707-99-68780
PC400-7E0, PC400LC-7E0 ARM 707-01-0G370 120 mm 185 mm 60001- KOM-707-99-68780
PC400LC-7L ARM 707-01-0F690 120 mm 185 mm A86001- KOM-707-99-68780
PC450-7K ARM 707-01-0F691 120 mm 185 mm K40001- KOM-707-99-68780
PC450-7K ARM (2.4M Arm) 707-01-0F741 120 mm 185 mm K40001- KOM-707-99-68780


Company warehouse

Hydraulic Motor Final Drive Seal Kit XKAY-00278 Fit Hyundai R330LC-9 R260LC-9

FAQ

1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.

2. Q: Can i make a small order first?
A: Yes, of course.

3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.

4. Q: Have you support the OEM or not?

A: Sure, we support the OEM,BULLDOG or as required.

5. Q: How can i pay the goods?

A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc

6. Q: How to ship the products?

A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.

7. Q: What’s the delivery time?

A: The goods can be shipped at 2-5 working days after receiving payment.
