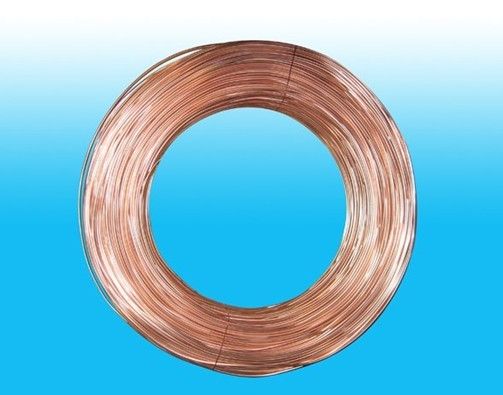

Copper Coated Bundy Tube For Wire-Tube Condenser 4.76mm X 0.6 mm
Copper Coated Bundy Tube For Wire-Tube Condenser 4.76mm X 0.6 mm
Copper Coated Bundy Tube For Wire-Tube Condenser 4.76mm X 0.6 mm
Copper Coated Bundy Tube For Wire-Tube Condenser 4.76mm X 0.6 mm
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
WUSHUN
Certification :
ISO9001,ISO14001
Model Number :
4.76X0.6mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box etc
Delivery Time :
According to quantity about order
Payment Terms :
T.T ,L/C, D/P, O/A etc
Supply Ability :
30000TON each year
Outer Diameter :
4.76mm
Wall Thickness :
0.6mm
use :
refrigeration,freezer，condenser,evaporator,chiller,heaters,etc
Description

Copper Coated Bundy Tube For Wire-Tube Condenser 4.76mm X 0.6 mm

surface treatment: copper coated
features:soft and easy to bend
elongation:more than 25%

1.materials:low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:4.76mm

4.wall thickness: 0.6mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7.surface treatment: copper coated

8. features:soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16.payment terms:T/T,L/C etc

17. supply ability:30000 ton per year

18. brand:WUSHUN

Applications:

Copper coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip and based on the national standard.

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

copper coating outside tube 4.76X0.6mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%

Competitive Advantage:

Bright copper coating, good welding performance.including copper coated outside and two sides ,size is complete and best price with best quality .According to the national standard.

Copper Coated Bundy Tube For Wire-Tube Condenser 4.76mm X 0.6 mm
