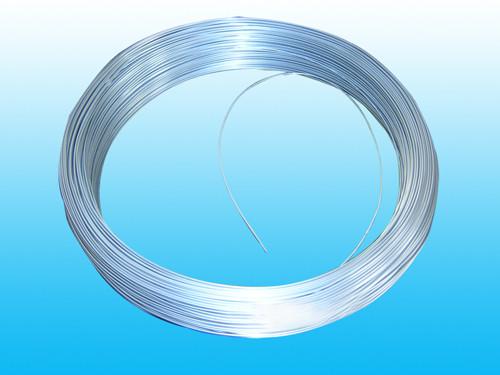

Low Carbon Steel Bundy Pipe , Galvanized Tubes For Freezer 8 * 0.7 mm
Low Carbon Steel Bundy Pipe , Galvanized Tubes For Freezer 8 * 0.7 mm
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
wushun
Certification :
ISO9001,ISO14001
Model Number :
8*0.7mm
MOQ :
1 Ton
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box
Delivery Time :
According to quantity about order
Payment Terms :
T.T L/C etc
Supply Ability :
30000 TON each year
Outer Diameter :
8mm
Wall Thickness :
0.7mm
Description

Low Carbon Steel Bundy Pipe , Galvanized Tubes For Freezer 8 * 0.7 mm

Galvanized Steel Tube
features: soft and easy to bend
Section Shape:Round
outer diameter:8mm
wall thickness: 0.7mm

Competitive Advantage:

we can produce zn coated steel tube according to customer's requirement,salt spray time from 24h to 120h,corrosion resistance is good .size is complete ,quality is best with competive price ,according country standard .

1.Materials: low carbon steel strip

2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:8mm

4.wall thickness: 0.7mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System

7.surface treatment: electric coating zn and hot galvanized

8. Features: soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. salt fog-resisting test time:also more than 72 hours

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16. supply ability:30000 ton per year

17. brand:WUSHUN

Applications:

Zn coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

ZN coated steel tube 8*0.7mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%

Galvanized pipe corrosion performance index

Product name

Zinc coating thickness

Salt spray test time

White galvanized tube

≥2μm

≥24 hours

≥4μm

≥72 hours

≥6μm

≥84 hours

Green

Galvanized tube

≥4μm

≥96hours

≥6μm

≥108hours

≥7μm

≥120 hours
