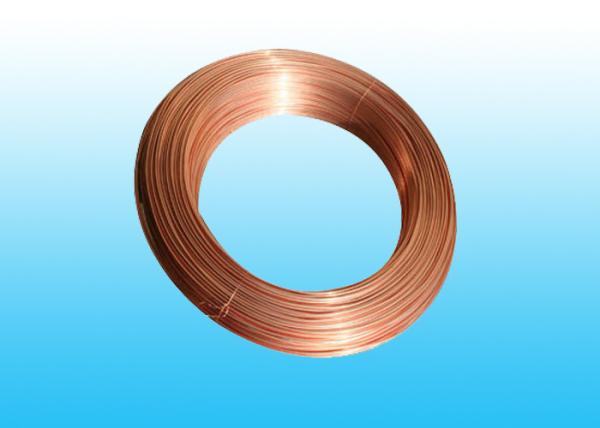

Round Copper Coated Bundy Tube 8mm X 0.5 mm , 25% Elongation
Round Copper Coated Bundy Tube 8mm X 0.5 mm , 25% Elongation
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
WUSHUN
Certification :
ISO9001,ISO14001
Model Number :
8X0.5mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box etc
Delivery Time :
According to quantity about order
Payment Terms :
T.T ,L/C, D/P, O/A etc
Supply Ability :
30000TON each year
Outer Diameter :
8mm
Wall Thickness :
0.5mm
Description

Round Copper Coated Bundy Tube 8mm X 0.5 mm , 25% Elongation

Main use:weldly used in evaporators,refrigerators,automobils
Features:high intensity,good palasticity,and smal resistance.
Standards:ASTMA254-9

Competitive Advantage:

Bright copper coating, good welding performance.including copper coated outside and two sides ,size is complete and best price with best quality .According to the national standard.

1.materials: low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:8mm

4.wall thickness: 0.5mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7.surface treatment: copper coated

8. features: soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16.payment terms:T/T,L/C etc

17. supply ability:30000 ton per year

18. brand:WUSHUN

Applications:

Copper coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip.

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

copper coated bundy tube 8X0.5mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%
