Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
Wushun
Certification :
ISO9001,ISO14001
Model Number :
4.2*0.5mm
Outer Diameter :
4.2mm
Wall Thickness :
0.5mm
MOQ :
1 Ton
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box
Delivery Time :
According to quantity about order
Payment Terms :
T.T, L/C, D/P etc
Supply Ability :
2000 TON each month
Description

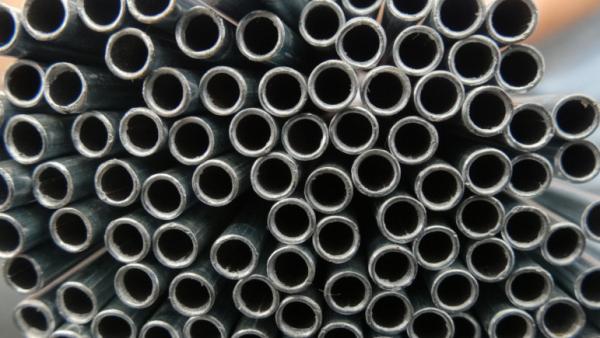

Hot Zinc Coated Galvanized Bundy Tube For Refrigeration System 4.2mm × 0.5mm

Galvanized Steel Tube
outer diameter:4.2mm
wall thickness: 0.5mm
low carbon steel strip

1.materials: low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:4.2mm

4.wall thickness: 0.5mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment

Management System

7.surface treatment: coating zn and hot galvanized

8. features:soft and easy to bend

9.tensile strength: more than 230 Mpa

10.yield strength:between 150-220 Mpa

11.elongation:more than 35%

12. salt fog-resisting test time:also also more than 72 hours

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. payment terms:T/T,L/C etc

16. delivery:as contract

17. supply ability:2000Tons per month

18. brand:WUSHUN

Applications:


Hot Zn coated Budy tubes mainly used in refrigerator, freezer ,condenser, evaporator and refrigeration system etc.It is made by material low carbon steel strip and based on the national standard.

Specifications:

Wall Thickness

0.5 mm

Section Shape

Round

Outer Diameter

4 .2 mm

Place of Origin

Jiangsu, China (Mainland)

Secondary Or Not

Non-secondary

Application

refrigerator, freezer

Technique

Cold Drawn

Certification

ISO9001,ISO14001,SGS

Surface Treatment

Galvanized

Alloy Or Not

Non-alloy

outer diameter

4.2mm

wall thickness

0.5mm

tensile strength

more than 230 Mpa

yield strength

150-220 Mpa

elongation

more than 35%

standard

GB/T 24187-2009

salt spray test

70~120h

Diameter tolerance

±0.08

Wall thickness tolerance

±0.08

Galvanized pipe corrosion performance index

Product name

Zinc coating thickness

Salt spray test time

White galvanized tube

≥2μm

≥24 hours

≥4μm

≥72 hours

≥6μm

≥84 hours

Green

Galvanized tube

≥4μm

≥96hours

≥6μm

≥108hours

≥7μm

≥120 hours

Competitive Advantage:

we can produce zn coated steel tube according to customer's requirement,salt spray time from 24h to 120h,corrosion resistance is good .size is complete ,quality is best with competive price ,according to country standard .
