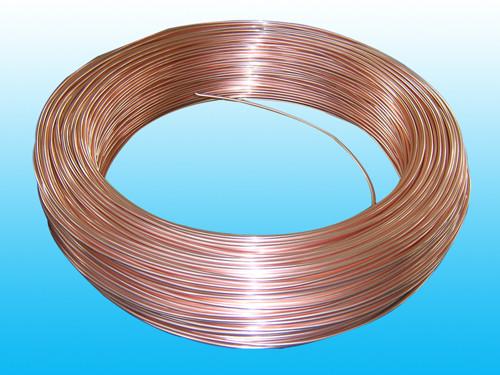

Good Plasticity Air Conditioning Copper Tubing / Condenser Tube 3.6* 0.5 mm
Good Plasticity Air Conditioning Copper Tubing / Condenser Tube 3.6* 0.5 mm
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
Wushun
Certification :
ISO9001,ISO14001
Model Number :
3.6*0.5mm
MOQ :
1 Ton
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box etc
Delivery Time :
According to quantity about order
Payment Terms :
T.T, L/C,D/P, O/A etc
Supply Ability :
10000 TON each year
Description

Good Plasticity Air Conditioning Copper Tubing / Brazed Tube 3.6* 0.5 mm

features: soft and easy to bend
low carbon steel strip
Section Shape: Round
Application: refrigerator, freezer
standard: GB/T 34020.1-2017

1. Materials: low carbon steel strip

2. Main use: widely used in air condition cooling system etc

3. outer diameter: 3.6mm

4. wall thickness: 0.5mm

5. standard: GB/T 34020.1-2017

6. certification: also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment

Management System

7. surface treatment: copper coated

8. Features: soft and easy to bend

9. tensile strength: more than 290 Mpa

10. yield strength: more than 180 Mpa

11. elongation: more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading: shanghai, China;

14. package: plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery: as contract

16. supply ability: 10000 ton per year

17. brand: WUSHUN

Good Plasticity Air Conditioning Copper Tubing / Condenser Tube 3.6* 0.5 mm

Applications:

Copper coated steel tube mainly used in air condition etc,it is made by material low carbon steel strip.The price is competitive among the area.

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter

tolerance

Wall thickness

tolerance

tensile strength

yield strength

elongation

brazed tube for air condition

3.6*0.5mm

±0.07

±0.08

≥270Mpa

≥180Mpa

≥25%

Competitive Advantage:

Bright copper coating, good welding performance. including copper coated two sides, size is complete and best price with best quality. According to international standard .


Good Plasticity Air Conditioning Copper Tubing / Condenser Tube 3.6* 0.5 mm
