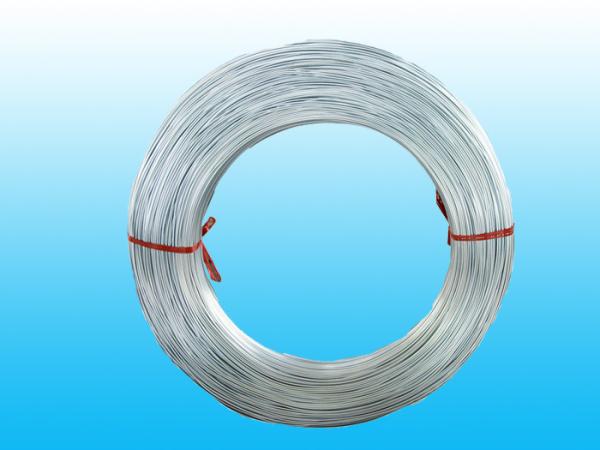

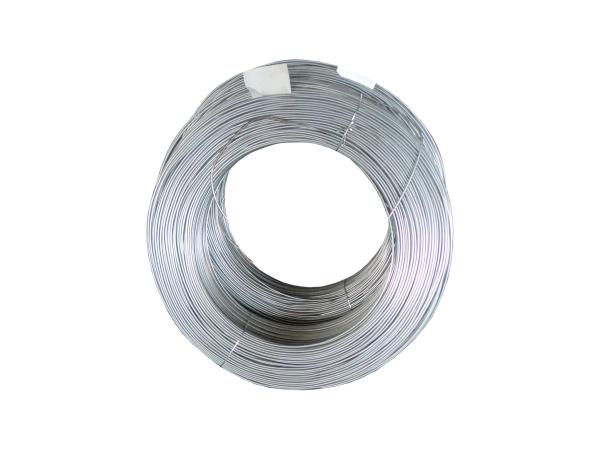

Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters
Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters
Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters
Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters
Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters
Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
wushun
Certification :
ISO9001,ISO14001,RoHS
Model Number :
6.35X0.65mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box etc
Delivery Time :
According to quantity about order
Payment Terms :
T.T ,L/C, D/P, O/A etc
Supply Ability :
30000 TON each year
Description


Hot Galvanized Bundy Tubes With 6.35mm X 0.65 mm For Heaters

Thickness:0.5 - 0.7 mm
Section Shape:Round
Outer Diameter:4 - 8 mm
Application:refrigerator, freezer


1. Materials:low carbon steel strip
2. Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3. outer diameter:6.35mm
4. wall thickness: 0.65mm
5. standard: GB/T 24187-2009
6. certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System
7. surface treatment: hot galvanized
8. Features: soft and easy to bend
9. tensile strength: more than 290 Mpa
10. yield strength:more than 180 Mpa
11. elongation:more than 25%
12. salt fog-resisting test time:also more than 72 hours
13. place of origin: changzhou city, jiangsu province, China.
14. port of loading:shanghai, China;
15. package:plastic cloth with coils, wooden boxes, iron pallets etc
16. delivery:as contract
17. supply ability:30000 ton per year
18. brand:WUSHUN


Applications:

Bundy tube is an important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip.

Specifications:

Thickness

0.65 mm

Section Shape

Round

Outer Diameter

6.35 mm

Place of Origin

Jiangsu, China (Mainland)

Secondary Or Not

Non-secondary

Application

refrigerator, freezer

Technique

Cold Drawn

Certification

ISO9001,ISO14001,SGS

Surface Treatment

Non-alloy

outer diameter

6.35mm

wall thickness

0.65mm

tensile strength

more than 290 Mpa

yield strength

more than 180 Mpa

elongation

more than 25%

standard

GB/T 24187-2009

salt spray test

70~120h

Diameter tolerance

±0.08

Wall thickness tolerance

±0.08


Competitive Advantage:
normally used on condenser and evaporator in refrigerator etc ,mainly material is steel ,than coating surface or plain .cost is low ,quality is good and competitive price ,according to country standard .
