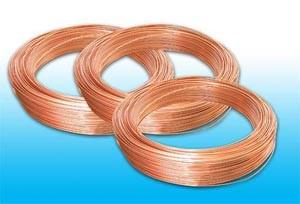

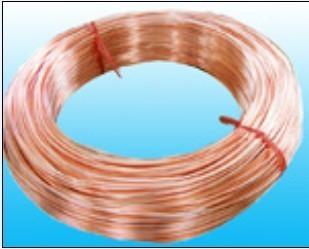

Copper Coated Bundy Tubes 6 mm X 0.65 mm For Evaporators
Copper Coated Bundy Tubes 6 mm X 0.65 mm For Evaporators
Copper Coated Bundy Tubes 6 mm X 0.65 mm For Evaporators
Copper Coated Bundy Tubes 6 mm X 0.65 mm For Evaporators
Copper Coated Bundy Tubes 6 mm X 0.65 mm For Evaporators
Copper Coated Bundy Tubes 6 mm X 0.65 mm For Evaporators
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
Wushun
Certification :
ISO9001 ISO14001
Model Number :
6X0.65mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box etc
Delivery Time :
According to quantity about order
Payment Terms :
T/T; L/C
Supply Ability :
30000 TON each year
Brand :
Wushun
Place of origin :
Changzhou city, Jiangsu province, China
Material :
Low carbon steel strip
Outer Diameter :
6mm
Wall Thickness :
0.65mm
Standard :
GB/T24187-2009
Surface Treatment :
Copper coated
Description

Copper Coated Bundy Tubes 6mm X 0.65 mm For Evaporators

low carbon steel strip
standard: GB/T 24187-2009
features: soft and easy to bend
outer diameter:6mm

1.Materials: low carbon steel strip

2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:6mm

4.wall thickness: 0.65mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7.surface treatment: copper coated

8. Features: soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12 place of origin: changzhou city, jiangsu province, China.

13 port of loading:shanghai, China;

14 package:plastic cloth with coils, wooden boxes, iron pallets,iron boxes etc

15 delivery:as contract

16 supply ability:30000 ton per year

17 brand:WUSHUN

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

Copper coated steel pipe 6mm X 0.65mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%

Competitive Advantage:

Normally used on condenser and evaporator in refrigerator etc ,mainly material is steel ,than coating surface or plain .cost is low ,quality is good and competitive price ,according to GB/T24187-2009 .

Applications:

Bundy tube is an important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporatoretc,it is made by material low carbon steel strip
