Bundy Tubes , Single Wall Coil Weld Steel Tube 6 X 0.6 mm
Bundy Tubes , Single Wall Coil Weld Steel Tube 6 X 0.6 mm
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
WUSHUN
Certification :
ISO9001,ISO14001,RoHS
Model Number :
6X0.6mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box etc
Delivery Time :
According to quantity about order
Payment Terms :
T.T ,L/C, D/P, O/A etc
Supply Ability :
40000 TON each year
Outer Diameter :
6mm
Wall Thickness :
0.6mm
Description

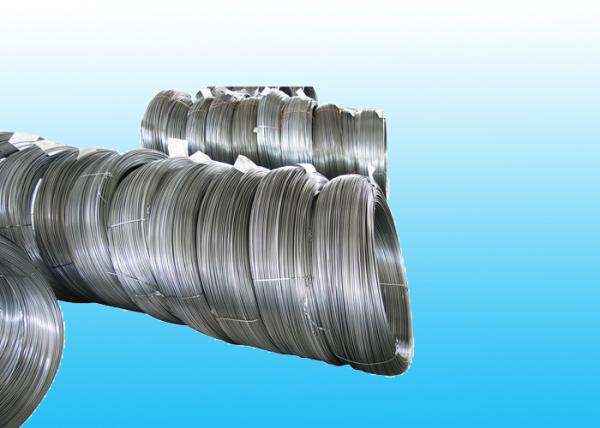

Bundy Tubes , Single Wall Coil Weld Steel Tube 6 X 0.6 mm


low carbon steel strip
standard: GB/T 24187-2009
features: soft and easy to bend
outer diameter:6mm


1. materials:low carbon steel strip

2. main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3. outer diameter:6mm

4. wall thickness: 0.6mm

5. standard: GB/T 24187-2009

6. certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7. surface treatment: no coated

8. features:soft and easy to bend

9. tensile strength: more than 290 Mpa

10. yield strength:more than 180 Mpa

11. elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China

13. port of loading:shanghai, China

14. package:plastic cloth with coils, wooden boxes, iron pallets etc standard export package

15. delivery:as contract

16. payment terms:T/T,L/C etc

17. supply ability:40000 ton per year

18. brand:WUSHUN


Applications:

Bundy tube is an important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip.


Specifications:

Thickness

0.5 - 0.7 mm

Section Shape

Round

Outer Diameter

4 - 8 mm

Place of Origin

Jiangsu, China (Mainland)

Secondary Or Not

Non-secondary

Application

refrigerator, freezer

Technique

Cold Drawn

Certification

ISO9001,ISO14001,SGS

Surface Treatment

Non-alloy

outer diameter

4mm,4.76mm,6mm,6.35mm,8mm

wall thickness

0.5mm,0.6mm,0.65mm,0.7mm

tensile strength

more than 290 Mpa

yield strength

more than 180 Mpa

elongation

more than 25%

standard

GB/T 24187-2009

salt spray test

70~120h

Diameter tolerance

±0.08

Wall thickness tolerance

±0.08



Competitive Advantage:

Normally used on condenser and evaporator in refrigerator etc ,main material is steel strip ,than coating surface or plain .cost is low ,quality is good and competitive price ,according to the national standard.
