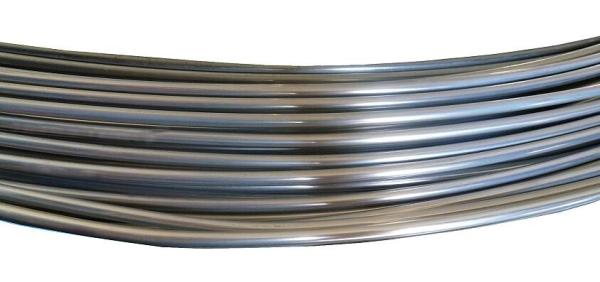

Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance
Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance
Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance
Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance
Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance
Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
wushun
Certification :
ISO9001,ISO14001,RoHS
Model Number :
8*0.65mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box
Delivery Time :
According to quantity about order
Payment Terms :
T.T, L/C,DP,OA etc
Supply Ability :
40000 TON each year
Outer Diameter :
8mm
Wall Thickness :
0.65mm
Description

Round Welded Plain Steel Bundy Tubes With Strong Corrosion Resistance

outer diameter:8mm
wall thickness: 0.65mm
low carbon steel strip

1. Materials:low carbon steel strip

2. Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3. outer diameter:8mm

4. wall thickness: 0.65mm

5. standard: GB/T 24187-2009

6. certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7. surface treatment: no coated

8. Features: soft and easy to bend

9. tensile strength: more than 290 Mpa

10. yield strength:more than 180 Mpa

11. elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16. supply ability:40000 ton per year

17. brand:WUSHUN

Applications:

Plain steel bundy tube is an important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser,evaporator etc,it is made by material low carbon steel strip

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

welded steel tube 8*0.65mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%

Competitive Advantage:

Surface coated with antirust oil, has strong corrosion resistance,size is complete,quality is best with competitive price.according to country standard .
