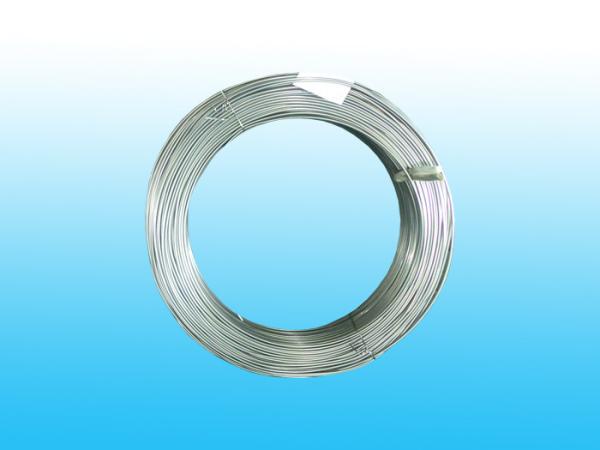

Custom Bundy Pipe , Hot Galvanizing Alloy Tube 4 * 0.5 mm
Custom Bundy Pipe , Hot Galvanizing Alloy Tube 4 * 0.5 mm
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
WUSHUN
Certification :
ISO9001,ISO14001
Model Number :
4*0.5mm
MOQ :
1 Ton
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box
Delivery Time :
According to quantity about order
Payment Terms :
T.T L/C etc
Supply Ability :
30000 TON each year
Outer Diameter :
4mm
Wall Thickness :
0.5mm
Description

Custom Bundy Pipe , Hot Galvanizing Alloy Tube 4 * 0.5 mm


features:soft and easy to bend
elongation:more than 25%
For Air,conditioning,Evaporator,Compressor,Condenser
For Condenser, Water Coolers, Fuel System

1.materials: low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:4mm

4.wall thickness: 0.5mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System

7.surface treatment: coating zn and hot galvanized

8. features: soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China

13. salt fog-resisting test time:also more than 72 hours

14.port of loading:shanghai,china

15. package:plastic cloth with coils, wooden boxes, iron pallets etc

16. delivery:as contract

17.payment terms:T/T,L/C etc

17. supply ability:30000 ton per year

19. brand:WUSHUN

Applications:

Zn coated steel tube is mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip and based on the national standard.

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

Hot galvanizing alloy tube 4*0.5mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%

Galvanized pipe corrosion performance index

Product name

Zinc coating thickness

Salt spray test time

White galvanized tube

≥2μm

≥24 hours

≥4μm

≥72 hours

≥6μm

≥84 hours

Green

Galvanized tube

≥4μm

≥96hours

≥6μm

≥108hours

≥7μm

≥120 hours

Competitive Advantage:

Salt fog-resisting test time from 72h to 1000h,corrosion resistance is great ,and also produce every spec by customer's requirment.Size is complete and best price with best quality.
