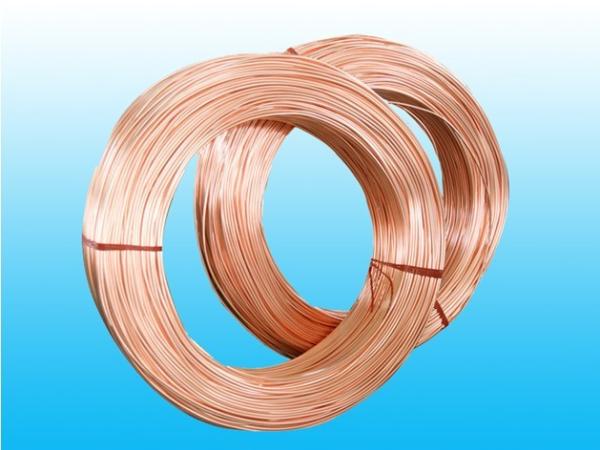

0.65mm Single Wall Cold Drawn Welded Tubes For Wire-Tube Condenser
0.65mm Single Wall Cold Drawn Welded Tubes For Wire-Tube Condenser
Specifications
Place of Origin :
Changzhou ,China
Brand Name :
wushun
Certification :
ISO9001,ISO14001
Model Number :
8*0.65mm
MOQ :
1 TON
Packaging Details :
Plastic cloth coil,wooden box,iron pallet,iron box
Delivery Time :
According to quantity about order
Payment Terms :
T.T ,L/C, D/P, O/A etc
Supply Ability :
30000TON each year
Outer Diameter :
8mm
Wall Thickness :
0.65mm
Description

0.65mm Single Wall Cold Drawn Welded Tubes For Wire-Tube Condenser


surface treatment: copper coated
features:soft and easy to bend
elongation:more than 25%
For Brake & Fuel System

1.materials: low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:8mm

4.wall thickness: 0.65mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management System

7.surface treatment:copper coated, coating zn and hot galvanized, no coating etc

8. Features: soft and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16.payment terms:T/T,L/C etc

17. supply ability:30000 ton per year

18. brand:WUSHUN

Applications:

Single wall steel tube is important part of refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc.It is made by low carbon steel strip and based on the national standard.

Specifications:

specification

dimensional tolerance

Mechanical properties

Diameter tolerance

Wall thickness tolerance

tensile strength

yield strength

elongation

single wall steel pipe 8*0.65mm

±0.08

±0.08

≥290Mpa

≥180Mpa

≥25%

Competitive Advantage:

Normally including plain ,copper coated outside ,copper coated two sides and zn coated ,hot galvanized steel tube etc .size is complete until OD more than 10mm ,quality is strictly according country standard , price is competitive and best price with best quality.
