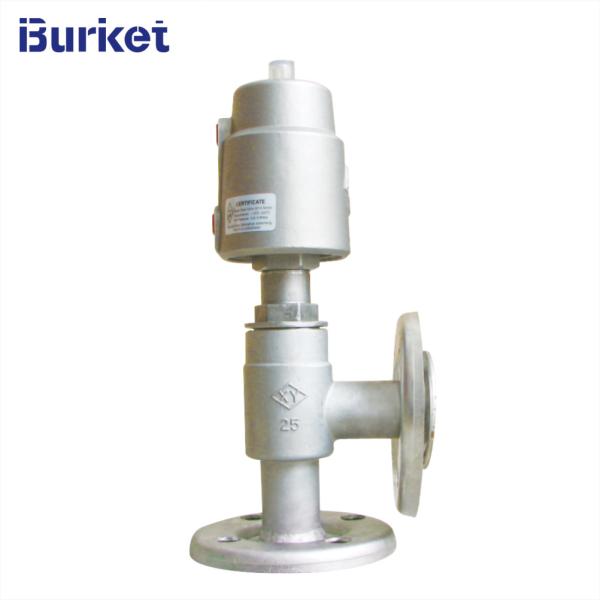

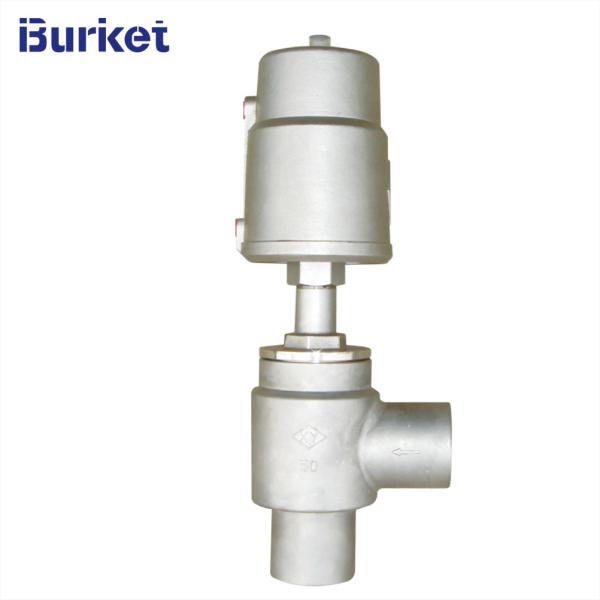

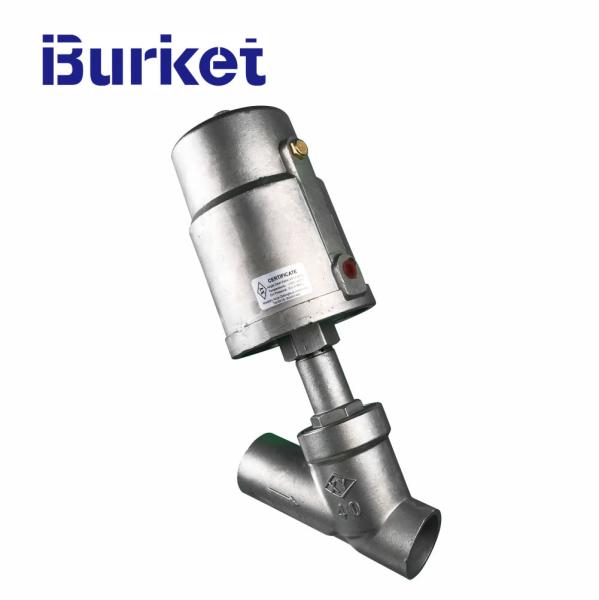

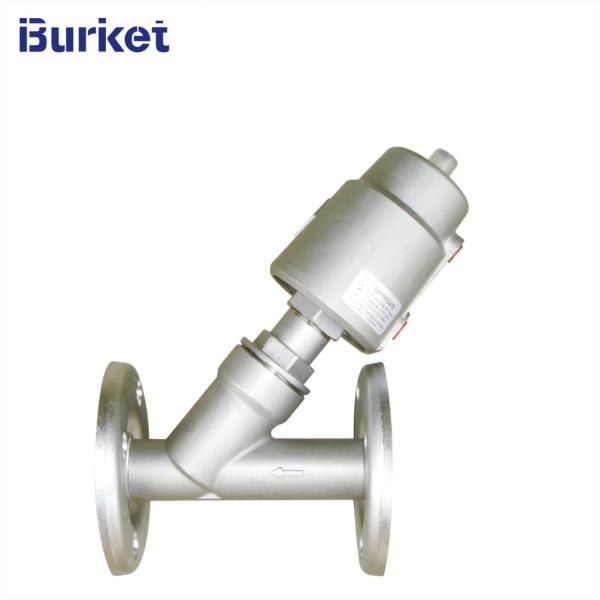

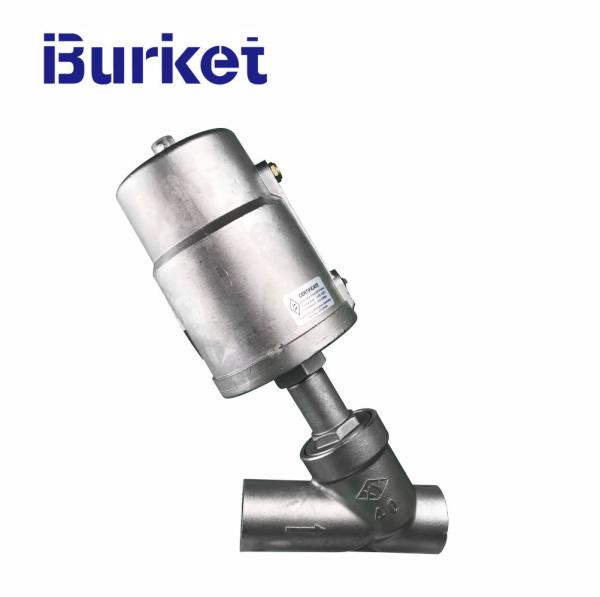

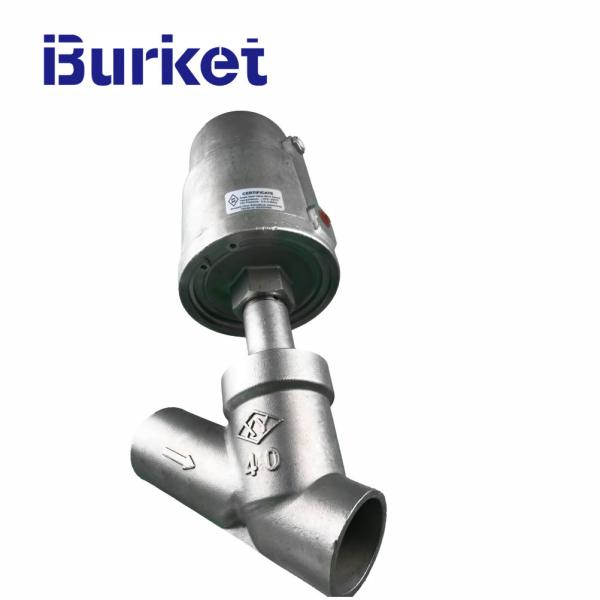

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator
Specifications
Brand Name :
XinYi
Model Number :
DN15-65
Place of Origin :
China
MOQ :
1 set
Price :
USD32-100/SET
Payment Terms :
T/T
Supply Ability :
10000/SET/YEAR
Delivery Time :
Within 1-3 days after receiving your payment
Packaging Details :
Wooden Box
Nominal pressure :
1.6Mpa
Temperature range :
-50~-250C
Connection method :
Flange
Actuating modes :
pneumatic.manual(lock available)
Materials :
SUS316, ，304
Accessories :
locator, .solenoid valve limit switch
Applicable mediums :
water, steam, gas，oil
Stuffing :
PTFE+Flexible Graphite
Type :
Angle valves
Description

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator

Technical Data:

Fluid Pressure : Max×1.6MPa(232psi)

Control Pressure:0.3-0.8MPa(43.5-116psi)

Control Fluid:Neutral gas,Air

Actuator Size:27mm,32mm,40mm,50mm,63mm,80mm,100mm,125mm

Applicable Fluid:Water,Alcohol,Oil,Dye,Steam,Neutral gas or liquid,Organic solvent,Acid and lye

Fluid temperature:-10ºC-+180ºC,25ºC-+220ºC

Ambient temperature:-10ºC-+80ºC

Control Type:Normally closed,Normally open,Double acting

Connection: Threaded(BSP.BSPT,NPT),Welded, Flanged, Tri-clamp

Main Materials :

Body Material:CF8M(SS316),CF8(SS304)

Seals Material:PTFE

Actuator Material:CF8 (SS304)

Applications:

Beer& Drink Filling Machinery

Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal

Advantages:

1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.
4.The Cylinder Material is Stainless Steel.Lubricating Automatically,360 Rolling Freely.

Product Overviews

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator

Pneumatic Actuator

Product Name Angle Valve
Applicable Medium Water, Gas, Oil, etc
Working Pressure 1.6 MPa
Body WCB
Valve Stem 304,316, 2Cr13,etc
Seal Material PTFE+Flexible Graphite
Working Temperature ≤250℃
Packing Details Usually Bubble Pack For Each Valve Within Carton Box Or Plywood Case, Or Special Packaging Upon Customer Requirements

Workshop

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator

2-way Pneumatic SS304 Angle Seat Valve With SS304 Pneumatic Actuator

FAQ

Q: What's your business scope?

A: Our business scope is pneumatic angle seat valves , pneumatic ball valves, etc.
Q: What is the price of the product?

A: Our prices are based on the size and type of material, if you can give me the information, then we can give you an estimated price is for reference only. We can customize if need.

Q: How much is our minimum order quantity?

A: Our minimum quantity is 1 Piece.

Q: What is your terms of delivery?

A: FOB/CNF/CIF, Customers' Request, port includes NINGBO/SHANGHAI, Customers' Request.

Q: What is your Packing details?

A:Plastic Bag, Carton & Plywood Case/According to customers' requirement.

Q: What's your delivery date?

A: It depends on the quantity of orders. Delivery date is 7-30 days. If you need emergency products, we can speed up the production of the first arrangement.
