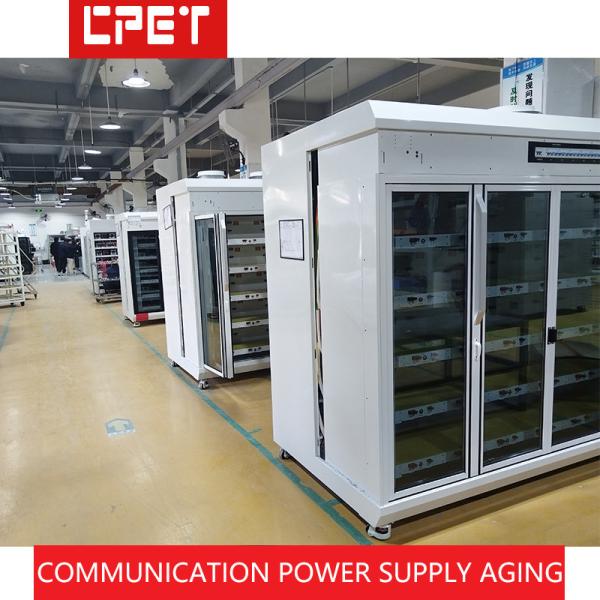

5g Base Station Outdoor Communication Power Supply Aging Test Equipment
5g Base Station Outdoor Communication Power Supply Aging Test Equipment
5g Base Station Outdoor Communication Power Supply Aging Test Equipment
5g Base Station Outdoor Communication Power Supply Aging Test Equipment
Specifications
Brand Name :
CPET
Model Number :
CP-5G04
Place of Origin :
China
MOQ :
2sets
Price :
8000dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
35 work days
Packaging Details :
Wooden case packing
Warranty :
1 year
Aging quantity :
60CH
Operating temperature :
Room temperature + 10℃ ~ 60℃ ± 5℃
Description

5g Base Station Outdoor Communication Power Supply Aging Test Equipment

It is mainly used to meet the burn-in requirements of 5G communication energy low-voltage three-phase 4KW and single-phase 6KW products, and is compatible with the burn-in test of 2KW and energy board power products to meet the factory test requirements. A single set of burn-in test system includes burn-in cabinet product cabinet (including temperature)control, power distribution, monitoring, etc.), burn-in distribution cabinet, load system, etc.

Performance parameters
5g Base Station Outdoor Communication Power Supply Aging Test Equipment
Project Specification requirements
Burn-in test capacity 1200W/CH,60CH
Rated insulation voltage 690VAC
Rated frequency 50Hz
Operating temperature Room temperature + 10℃ ~ 60℃ ± 5℃
Output channel specifications 380VAC/Three-phase 60A
Monitoring rate The refresh interval of digitally collected information in the cabinet needs to be less than 1s
Smoke sensor type Overhead installation type smoke sense, normally closed point work
Temperature rise of power distribution components

Complies with the provisions of IEC 60947-1 on temperature rise, and the temperature rise value does not exceed the corresponding standard requirements of the component
Leakage Protection

The power input of the cabinet must match the power leakage protection function of the equipment. The AC side needs to be installed with a 30mA leakage protection circuit
