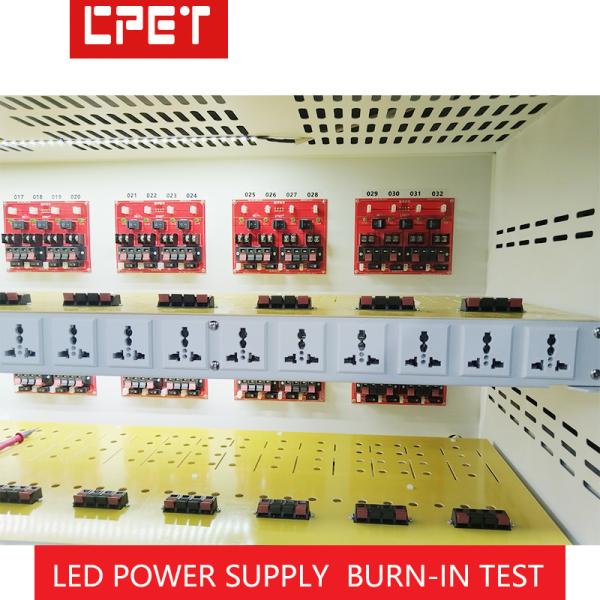

UE Light Emitting Diode LED Driving Power Supply Burn In Chamber
UE Light Emitting Diode LED Driving Power Supply Burn In Chamber
UE Light Emitting Diode LED Driving Power Supply Burn In Chamber
UE Light Emitting Diode LED Driving Power Supply Burn In Chamber
Specifications
Brand Name :
CPET
Model Number :
CP-300103
Place of Origin :
China
MOQ :
2sets
Price :
8000dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
35 work days
Packaging Details :
Wooden case packing
Power of single channel :
96W/CH
Warranty period :
12 months
Load Mode :
CC+CV+CR+CP+LED Mode
Description

UE Light Emitting Diode(LED) Driving Power Supply Burn In Chamber

Outstanding functions
UE Light Emitting Diode LED Driving Power Supply Burn In Chamber
1. Be of editable switch sequence and load conversion function
2. Cooperate with monitoring software of power burn-in, for application
3. Interface of multiple DC adapter plates can meet the demands for different output interface products
4. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products
5. Be of AC parameters measurement module and testing power input characteristics (optional)
Performance parameters
UE Light Emitting Diode LED Driving Power Supply Burn In Chamber
Model CP-300103
Power of single channel 96W/CH
Quantity of load channels 96CH
Scope of load voltage 8-420V
Scope of load current 0.05-12A/CH
Load precision ±(1%+0.1%FS)
Load Model Energy Saving
Load Mode CC+CV+CR+CP+LED Mode
Number for plies of product zone 6
Height for plies of product zone(mm) 170
Width of products zone(mm) Series CC mode 380
Temperature control of
products zone		 Temperature control type of products zone: normal temperature-60℃
Structure material of trolley Elaborately processed and produced with cold-rolled sheet
Mode of main control Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT Connecting fixture boards (with various specifications) for first choice/custom design
External dimension 2050*1200*1900/custom design
