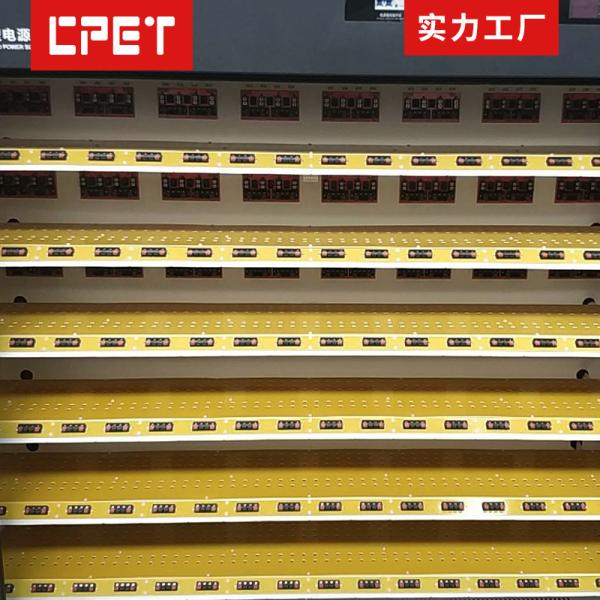

400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
Specifications
Brand Name :
CPET
Model Number :
CP-300302
Place of Origin :
China
MOQ :
2sets
Price :
7200dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
40 work days
Packaging Details :
Wooden case packing
Power of single channel :
400W/CH
Warranty period :
12 months
Weight :
400kg
Description

LED Power Supply Burn-In Test System For Led Drive Power Board Movement Switch

excellent function
400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

3. Support parallel connection of channels under any load modes and meet power extension of products

4. Support power cc from low voltage to high voltage and from low current to large current

5. Interface of multiple DC adapter plates can meet the demands for different output interface products

6. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products

7. Be of automatic voltage switching function (optional)

8. Be of PWM dimming function and two groups of logic control signal function(optional)
Performance parameters

400W/CH LED Power Supply Burn In Test System For Led Drive Power Board Movement Switch
Model CP-300302 CP-300402
Power of single channel 400W/CH 100W/CH
Quantity of
load channels		 240CH 192CH
Scope of load voltage 2-450V 2-450V
Scope of load current 0.05-10A/CH 0.05-5A/CH
Load precision ±(1%+0.1%FS) ±(1%+0.1%FS)
Load Model Electronic load type Electronic load type
Load Mode CC+CV Mode CC+CV Mode
Number for plies
of product zone		 6
Height for plies of
product zone(mm)		 170
Width of
products zone(mm)		 Series CC mode 380
Temperature control of
products zone		 Temperature control type of products zone: normal temperature-60℃
Structure material of
trolley		 Elaborately processed and produced with cold-rolled sheet
Mode of main control Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT Connecting fixture boards (with various specifications) for first choice/custom design
External dimension 2050*1200*1900/custom design
