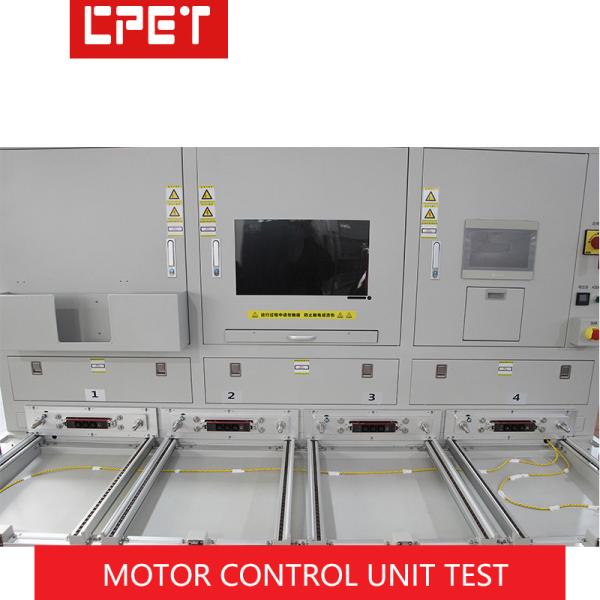

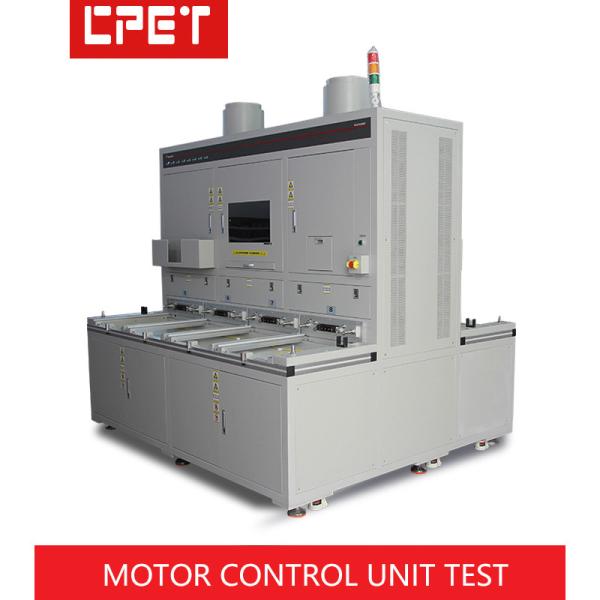

Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller
Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller
Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller
Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller
Specifications
Brand Name :
CPET
Model Number :
CP-MCU04
Place of Origin :
China
MOQ :
10
Price :
18000dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
40 work days
Packaging Details :
Wooden case packing
Feedback power :
256kW
Input power :
320kW
Warranty period :
12 months
Description

Burn-In Test Equipment For Vehicle Motor Control Unit Motor Controller

Architecture diagram

Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller

Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller

Performance parameters
Burn In Test Equipment For Vehicle Motor Control Unit Motor Controller

System System structure 1 control cabinet + 2 aging cabinets + 1 water temperature cabinet
Overall size 6900*1600*2050mm
Total floor area 6900*2500mm(Including operation area)
Total input voltage Three-phase five-wire system 220Vac (rated)
Total input current 250A
Total input power 150kW
Application ambient temperature 0-40℃
Application environment humidity 0-95%
Fire protection requirements Materials meet UL 94V0 rating
Environmental requirements Materials comply with Rohs, WEEE requirements
Safety requirements Comply with IEC62368 international standard design requirements
Burn-in cabinet Burn-in bits/cabinet 16 bits/cabinet
Burn-in bits/layer 4 bits/layer
Burn-in product power 20kW/bit
Burn-in product input voltage 150-1000Vdc
Burn-in product input current 50A/bit
Burn-in Product Load Category Inductive/Motor/AC Feedback Load
Burn-in product load current 350A (inductor/motor)/40A (AC feedback load)
Auxiliary voltage of Burn-in products 8-30Vdc
Auxiliary current of Burn-in products 10A
Power Connector Type SB50 (HV+/HV-)
Load Connector Type SB350 (U/V/W/PE)
Signal Connector Type 24Pin 5566
Input power 320kW
Feedback power 256kW
Constant temperature range Room temperature+5°C-60°C
Constant temperature accuracy ±5°C
Number of temperature control points 5
Open type Sliding door/folding door/side door
Volume size 2100*1600*2050mm
Dimensions in the product area 1700*550*1500mm
Product area layers 4
Bit space size 425*550*350mm
Minimum floor height 300mm
Top floor height 1450mm
Product area air duct direction Left and right ventilation
Cooling method Air cooling
Material 1.5mm cold rolled sheet
Water
temperature
cabinet		 Water temperature range Room temperature+5°C-60°C
Water temperature accuracy ±5°C
Water temperature 8
Number of serial products/way

4/way
Dissipated power/circuit 4kW/way
Cooling method Chilled water or air cooling
Water pressure range 0.05-0.2MPa
Flow range 3-15L/min
Channel diameter 3/4 inch
Volume size 880*1000*1900mm
Monitoring
software		 Display running information Input voltage, current, power, output voltage
(DC source module communication or product communication)
Show status information Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current /
No Output / Protection
